PV Panel Cleaning Brush WLS-4

Core Features

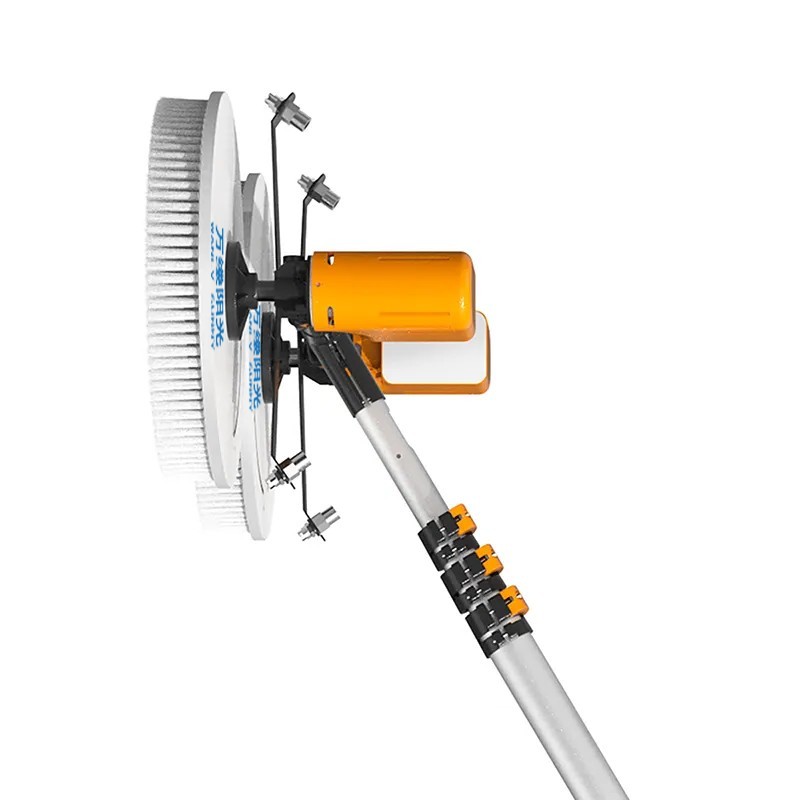

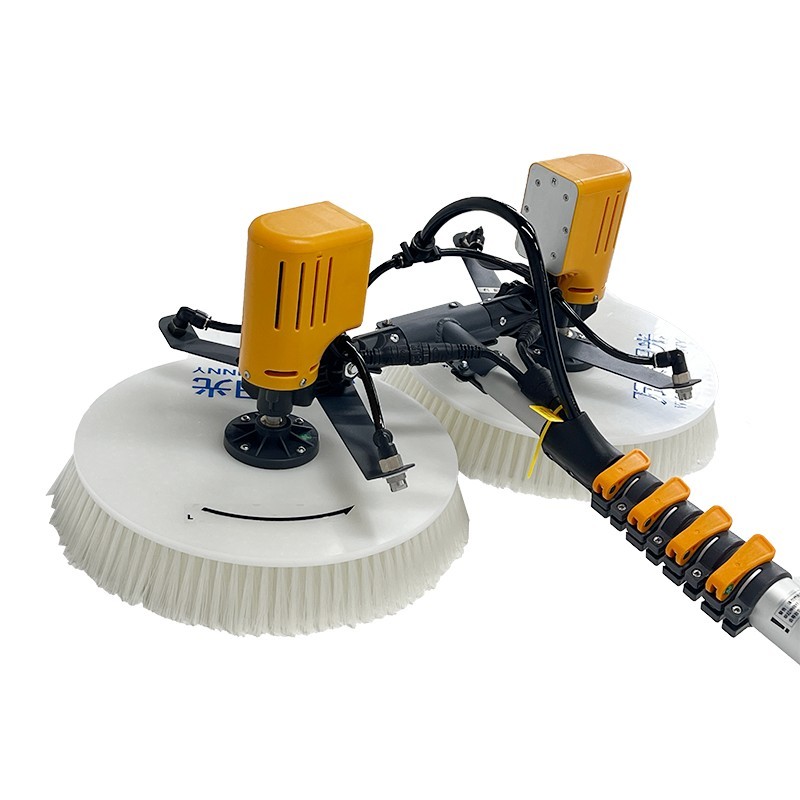

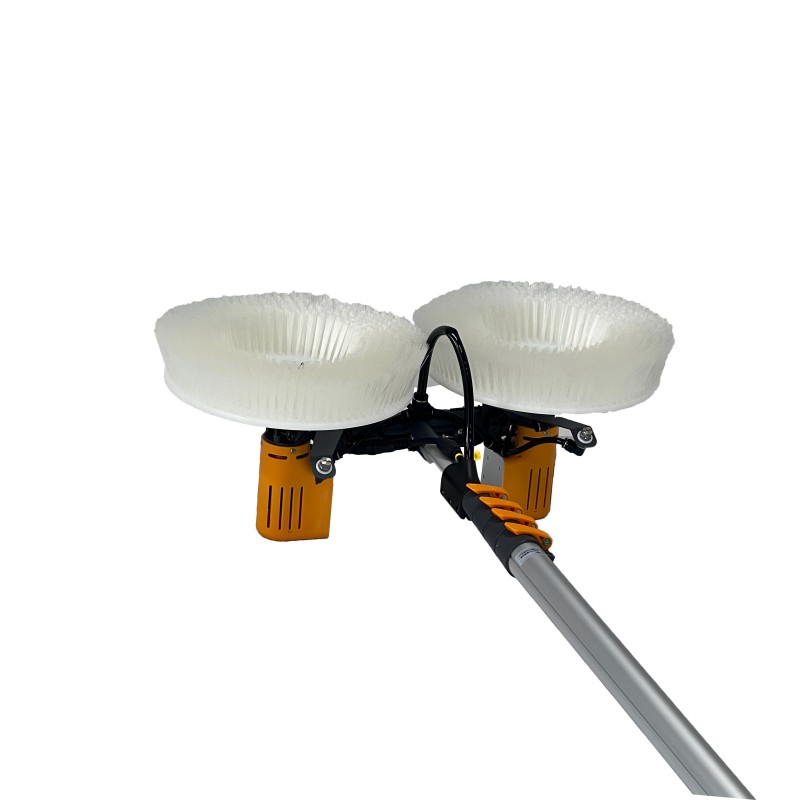

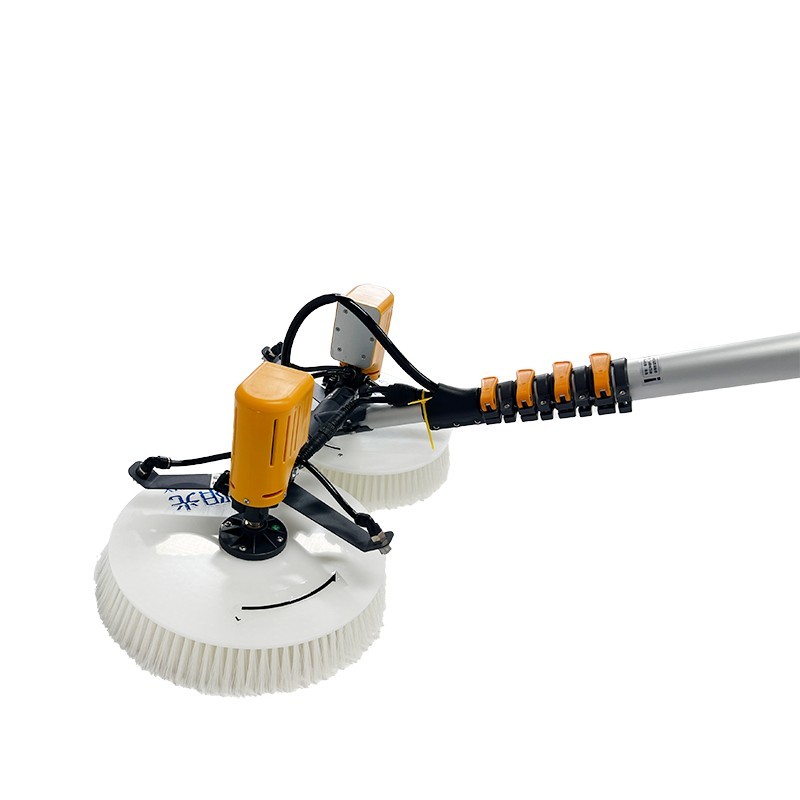

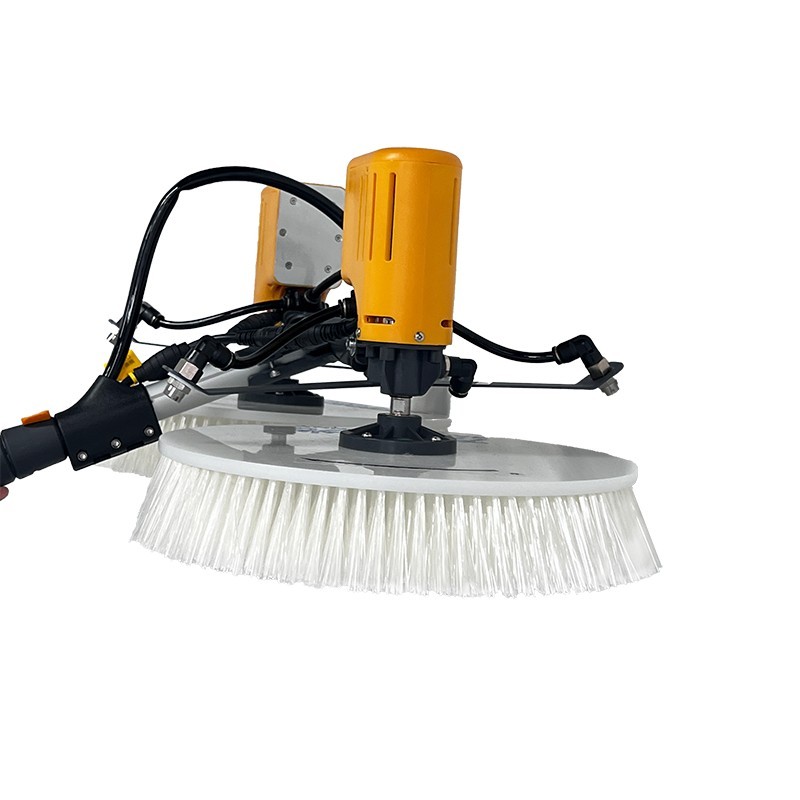

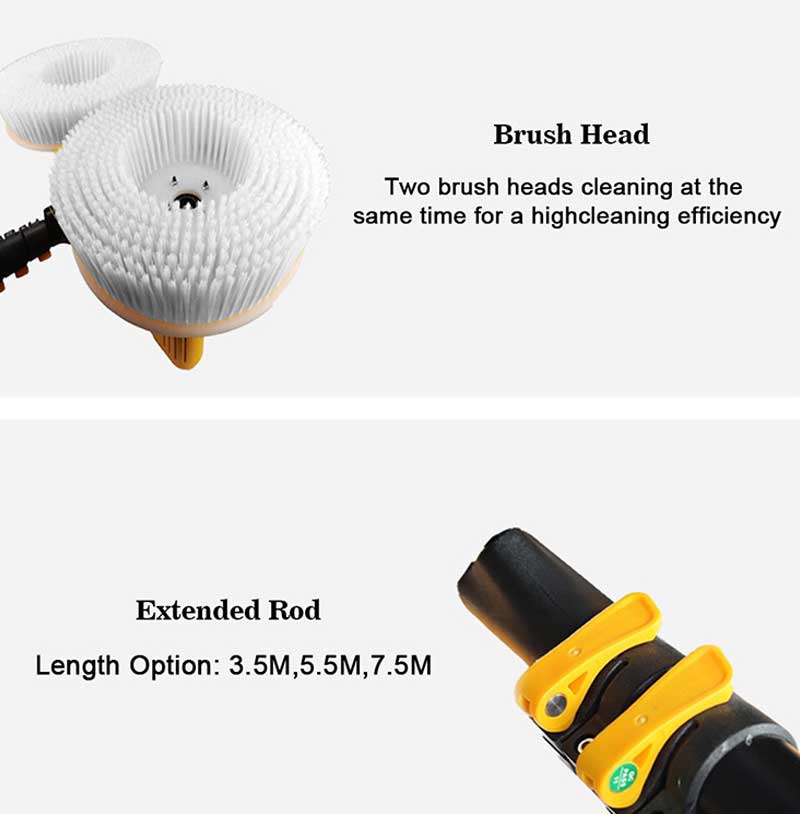

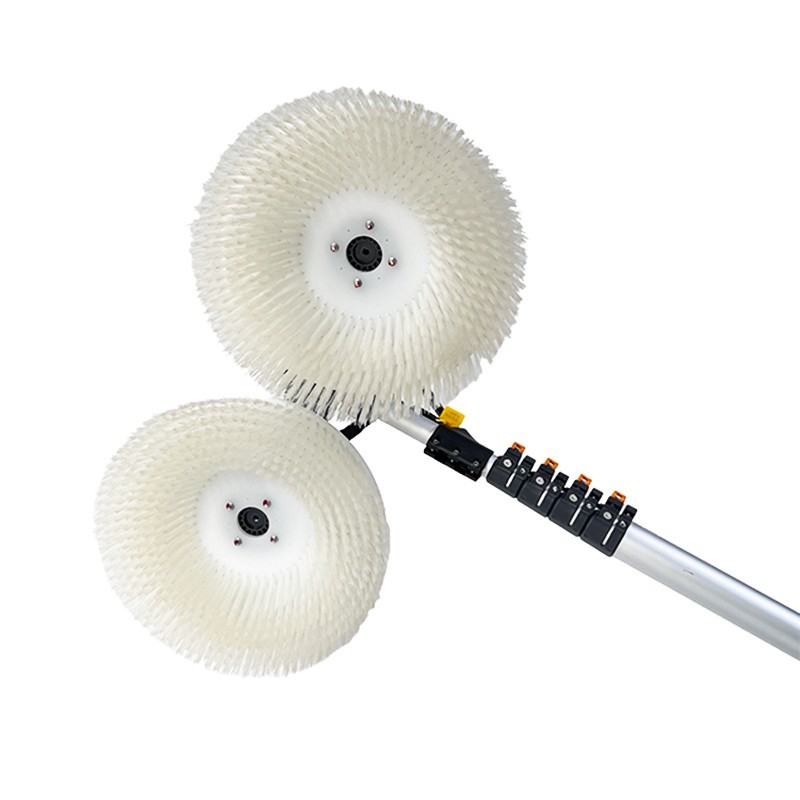

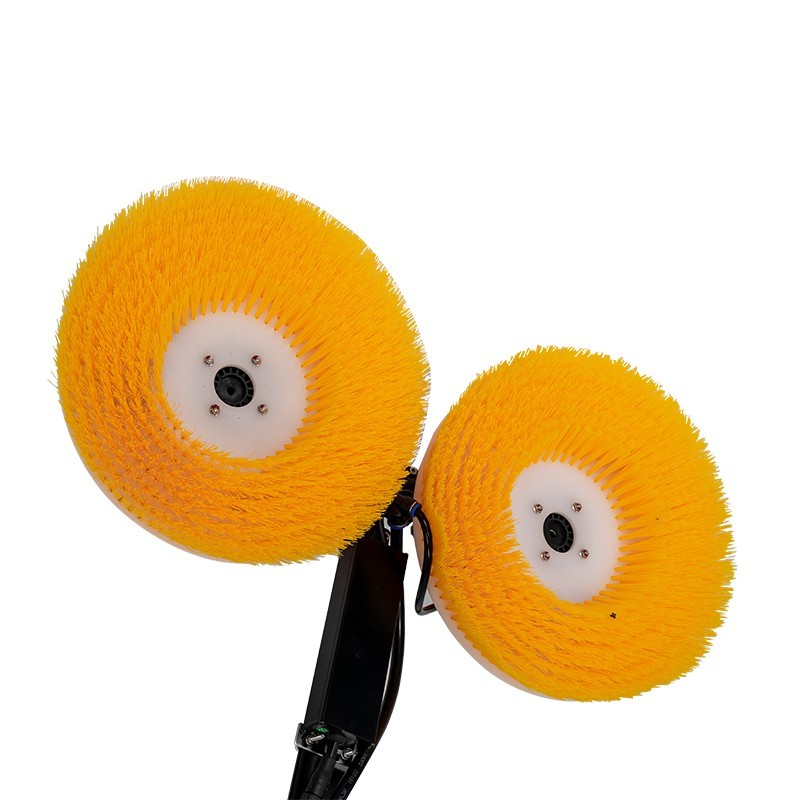

1. Double-Head Balanced Design for Strong Cleaning Power

• Balanced Force & Stable Operation: Equipped with two rotating brush heads, the machine achieves force balance during high-speed rotation, avoiding deviation or damage to panels caused by uneven pressure.

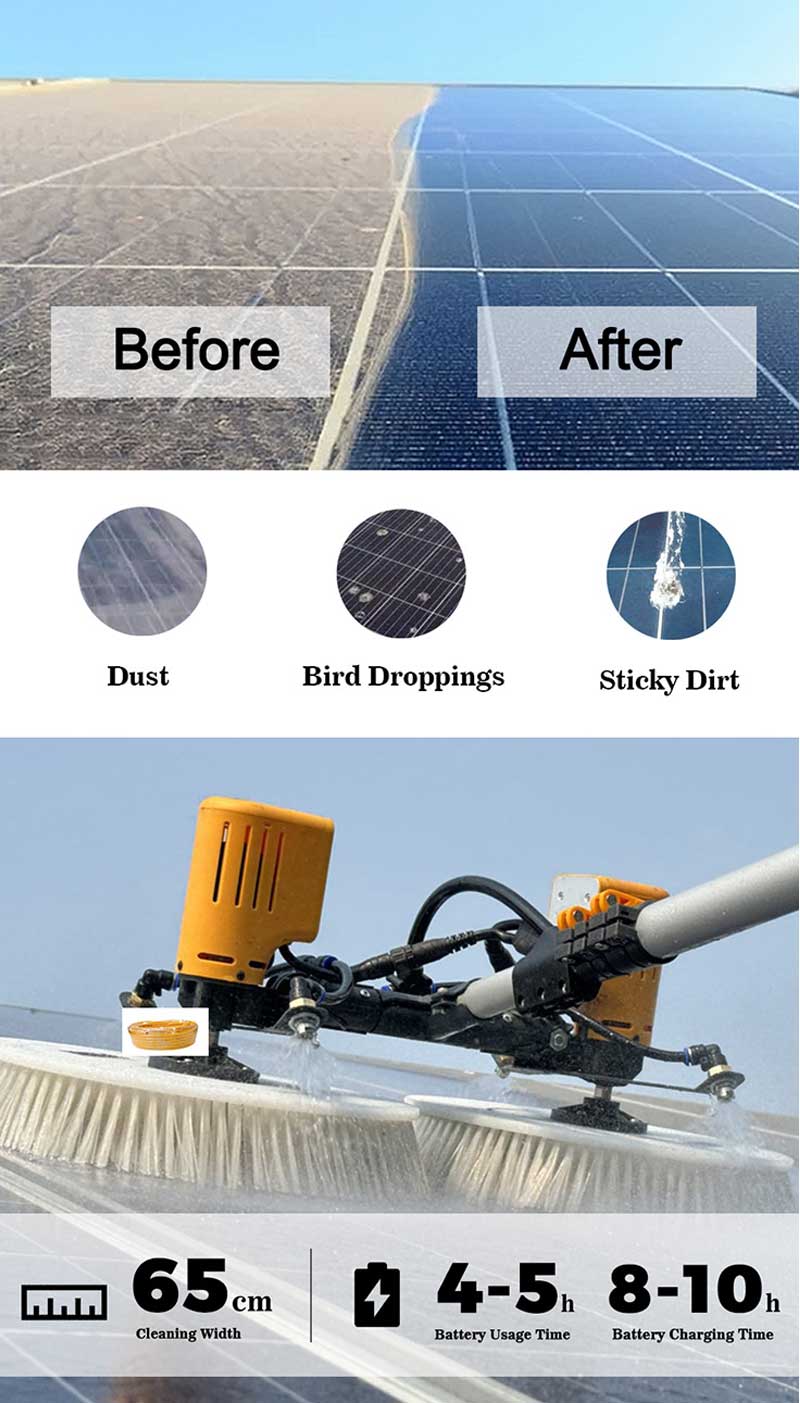

• Dual-Cleaning Modes: Supports both dry cleaning (for light dust) and wet cleaning (for stubborn contaminants like sticky dirt). When combined with water spray, it strongly removes surface residues, ensuring optimal panel transmittance.
• Wide Cleaning Coverage: Each brush head has a diameter of 32cm, delivering a total cleaning width of 65cm—doubling the efficiency of single-head cleaners and reducing cleaning time for large-scale PV stations.

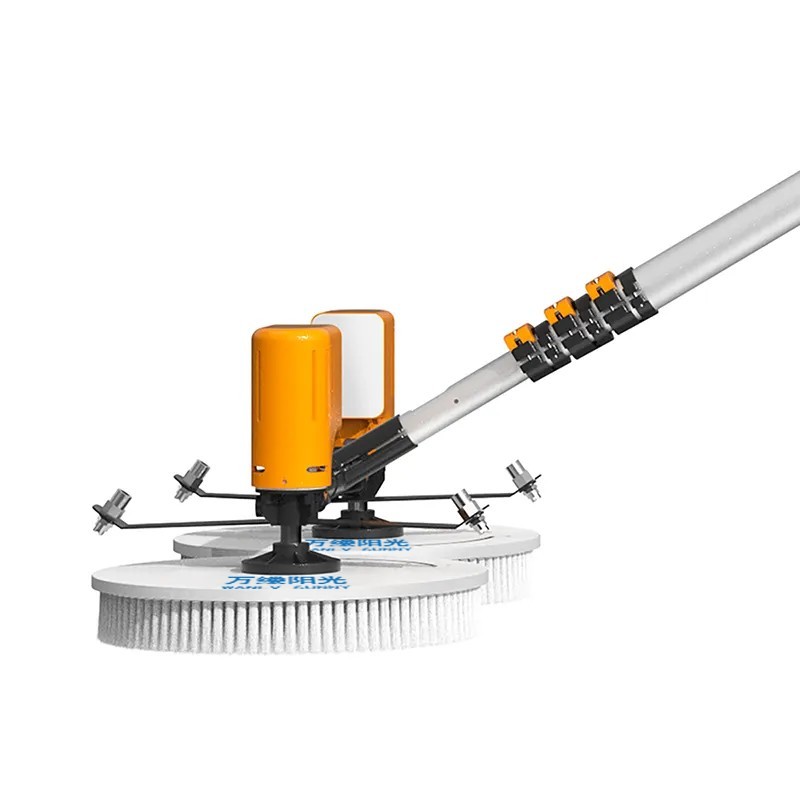

2. Flexible Telescopic Rods for Long-Distance Cleaning

• Multi-Length Options: Offers three telescopic rod specifications to adapt to different cleaning heights: 3.5m (3 sections), 5.5m (4 sections), and 7.5m (5 sections), covering most PV panel installation scenarios (e.g., low-rise rooftops, ground-mounted arrays).

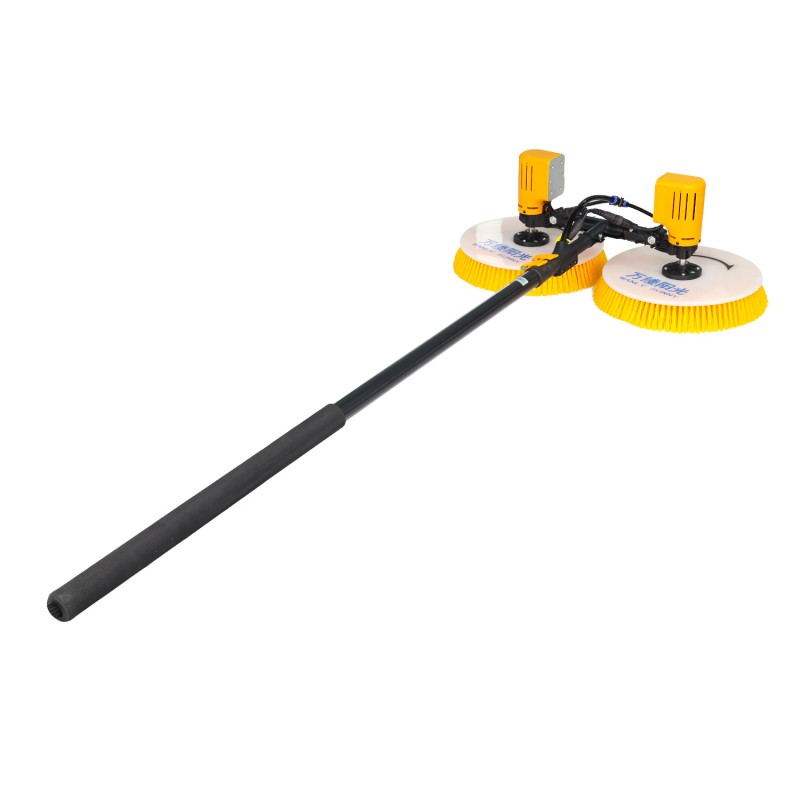

• Durable & Lightweight Material: The telescopic rods are made of aluminum alloy (carbon fiber optional for customization) with a wall thickness of 1.0mm—striking a balance between strength and portability. The maximum diameter of the telescopic tube varies by length: 35mm (3.5m) and 40mm (5.5m/7.5m), ensuring stability during extended use.
• Easy Maneuverability: The three-rod structure provides stable support, allowing operators to control the cleaning angle easily without excessive physical effort.


3. Multi-Version Power Supply for All Scenarios

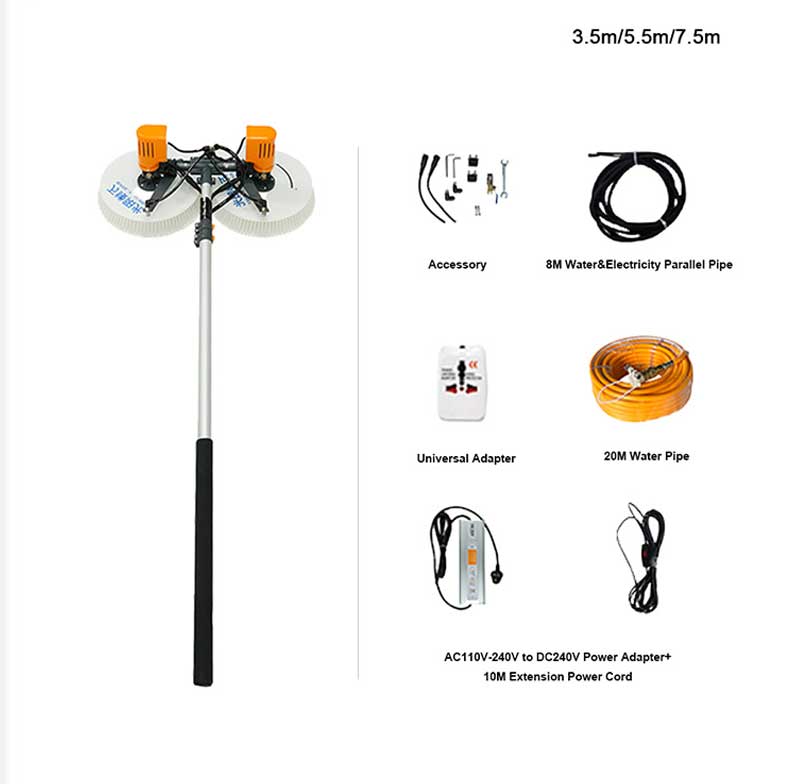

• Mains Version (WLS-4-1):
  • Powered by 220V mains for stable, long-lasting operation—no need to replace batteries.
  • Equipped with an 8m extended power cord (total length 16m) and a 220V-to-24V power converter, ensuring safe voltage output for the motor.

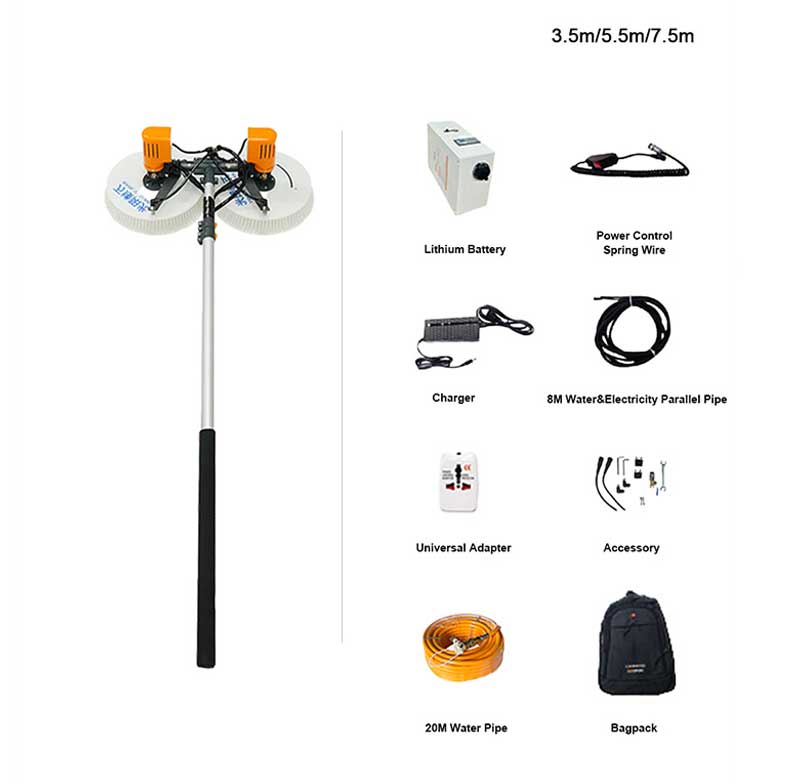

• Lithium Battery Version (WLS-4-2):
  • Cordless design for flexible operation, unaffected by power source distance.
  • Includes a lithium battery pack (24V/26Ah) and a battery backpack for easy carrying. The battery supports 4-5 hours of continuous use and takes 5 hours to fully charge; a 10A current ensures stable power supply to the motor.
  • Matches a 50m water pipe for short-distance water supply; compatible with a gasoline pump (paired with a gasoline generator) for waterless and powerless environments.

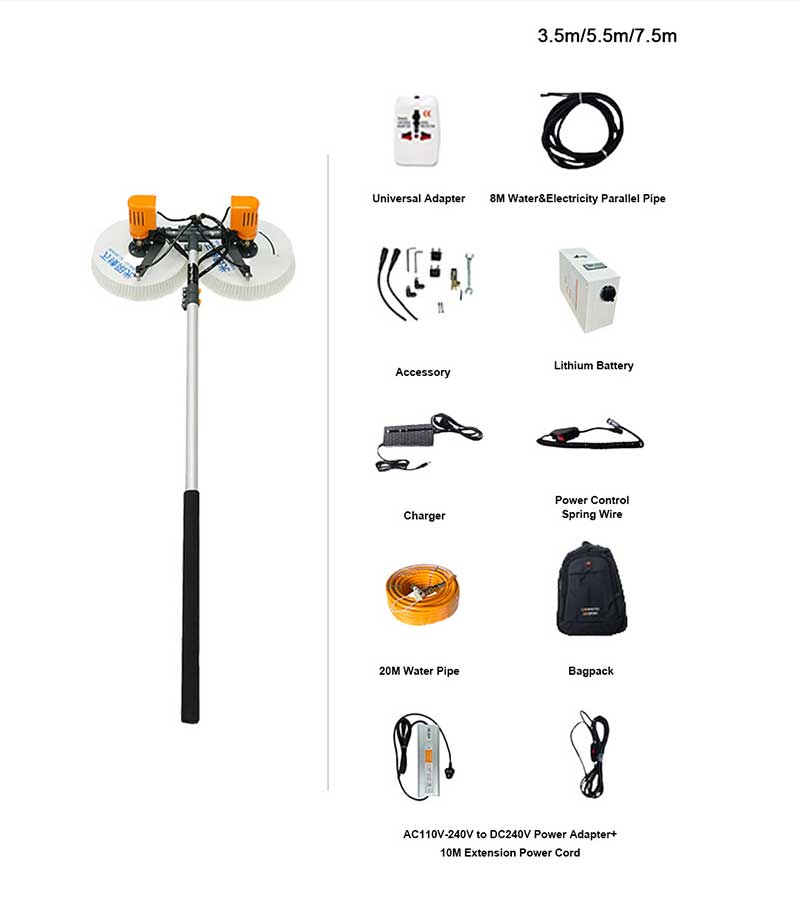

• Dual-Use Version (WLS-4-3):
  • Combines the advantages of the mains and lithium battery versions, supporting both 220V mains and lithium battery power.
  • The most versatile option, suitable for scenarios with unstable power (e.g., remote PV stations) or mixed indoor/outdoor cleaning needs.

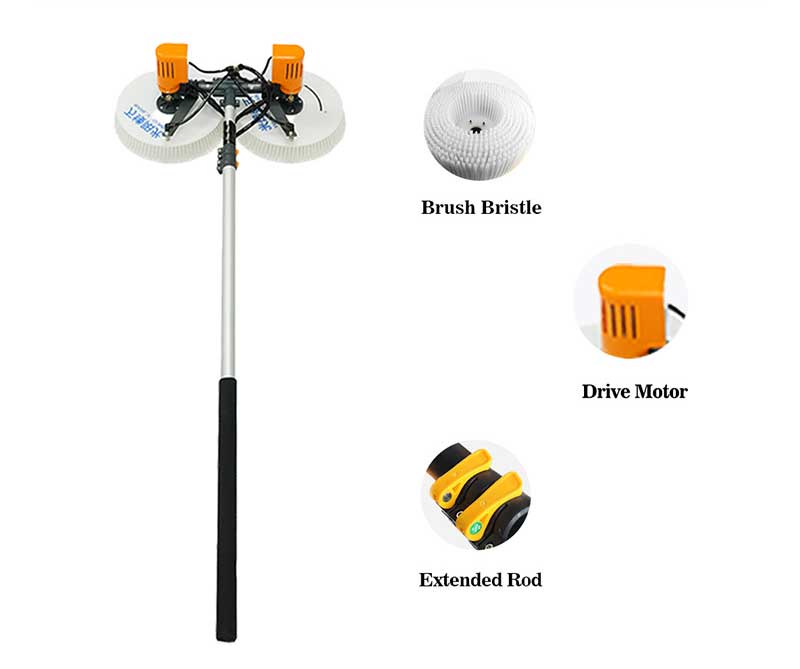

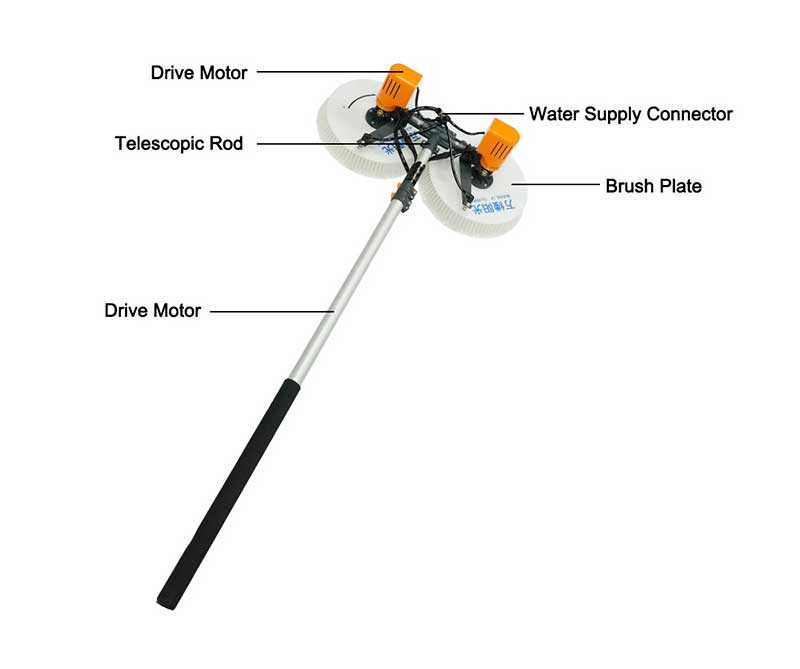

4. Efficient & Durable Component Configuration

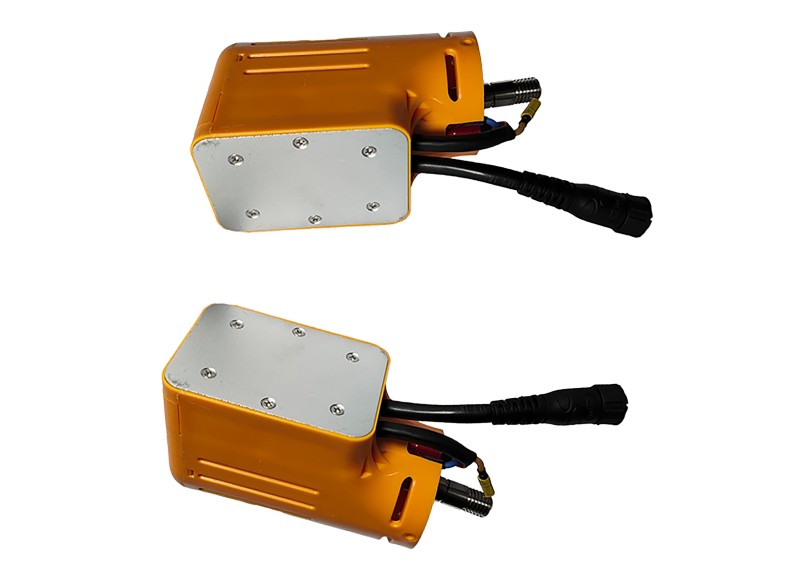

• High-Performance Motor: All versions feature a 24V motor with adjustable speed (300/350 rpm) and single-motor power (120/150 Watt). The motor delivers strong torque for high-speed brush rotation, ensuring thorough cleaning without overheating.
• Wear-Resistant Brush Material: Brushes are made of new-material nylon yarn—soft enough to avoid scratching PV panel coatings, yet durable enough to resist wear from long-term use.
• Long-Distance Water Supply: Supports 50m short-distance water supply (via lithium battery water pump) and 100-200m long-distance water supply (via 220V high-pressure water pump), adapting to large-area PV station layouts.

Application Scenarios

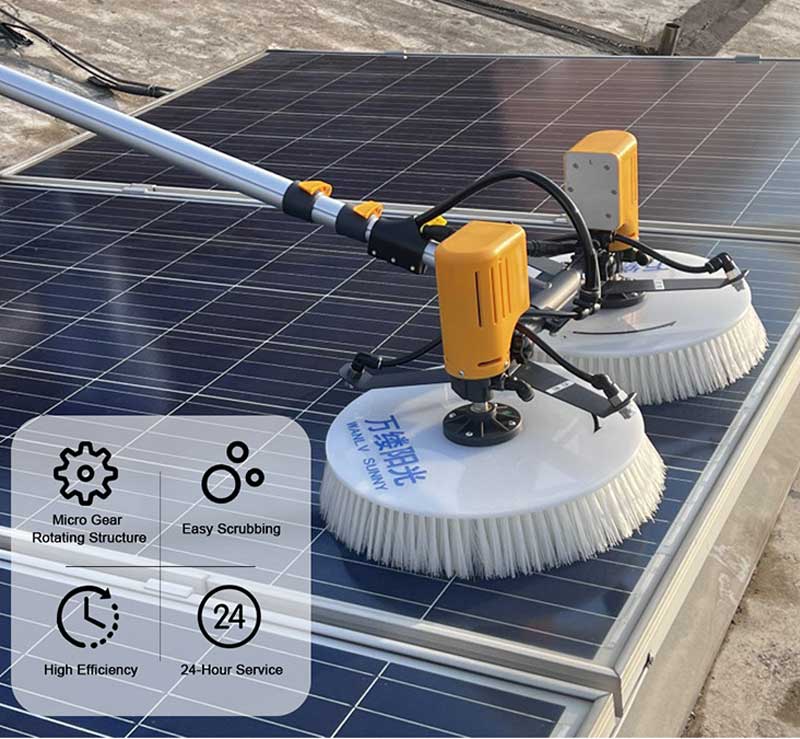

• Large-scale ground-mounted photovoltaic power stations
• Distributed PV projects on cement roofs and color steel tile roofs
• Remote PV facilities with unstable power supply (ideal for Lithium/Dual-Use Versions)
• PV panels at heights of 3.5-7.5 meters (e.g., multi-story building rooftops)
• Scenarios requiring frequent switching between dry and wet cleaning

After-Sales & Support

• • 24-Hour Online Service: Provide timely technical consultation and troubleshooting support via online channels.
  • Sample Service: Offer sample orders at a cost of US$475 per set, allowing customers to test performance before bulk purchase.
  • Customization Options: Support customization of telescopic pole material (e.g., carbon fiber upgrade) and water pipe length based on specific project needs.
  • Warranty: 1-year warranty for core components (motor, battery pack), covering manufacturing defects and performance issues.
