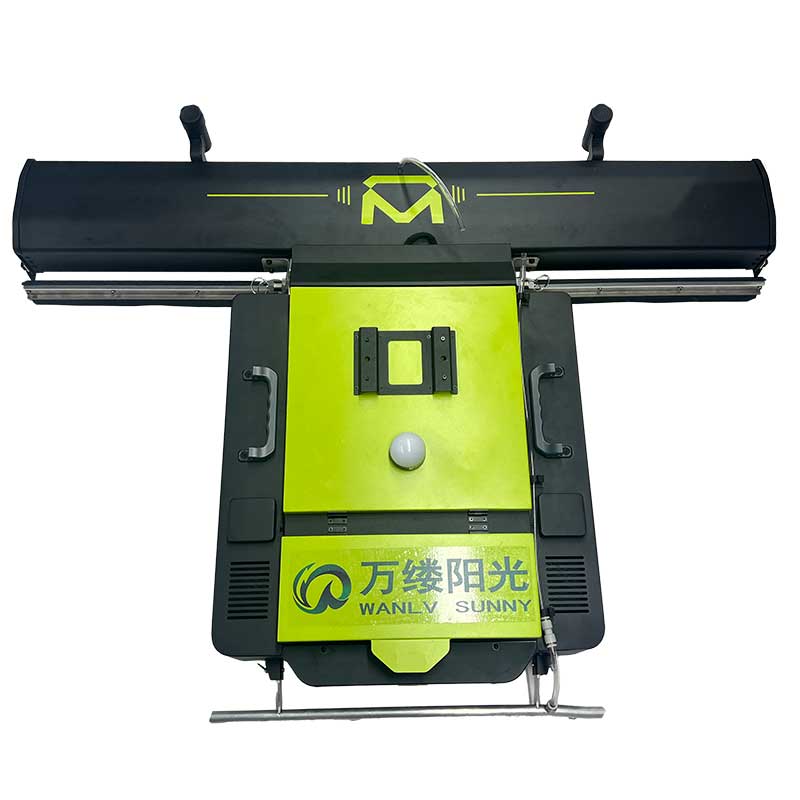

wls 73s (1)

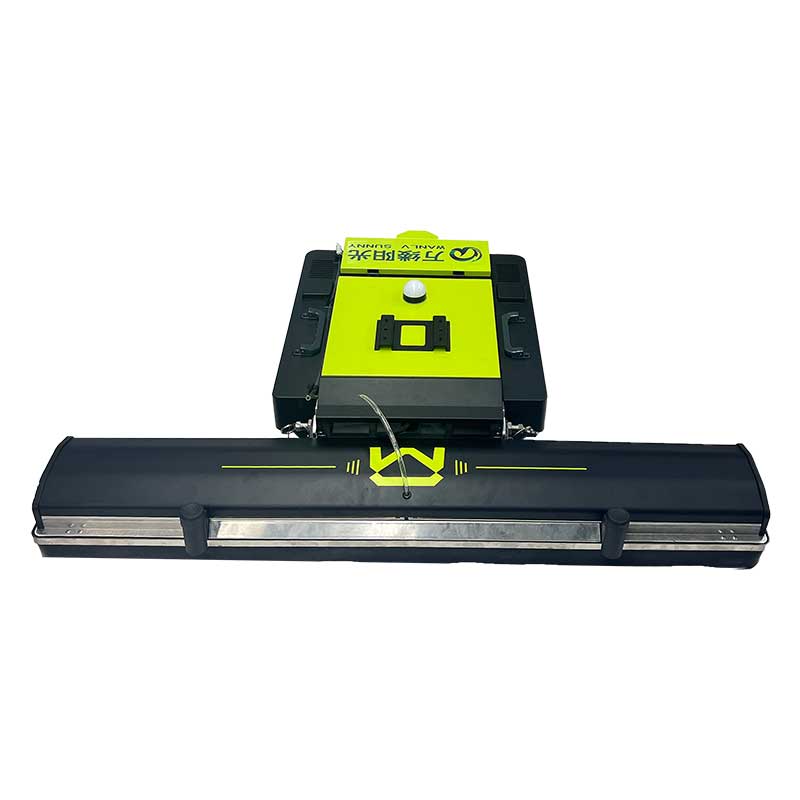

wls 73s (2)
wls 73s (3)
wls 73s (4)

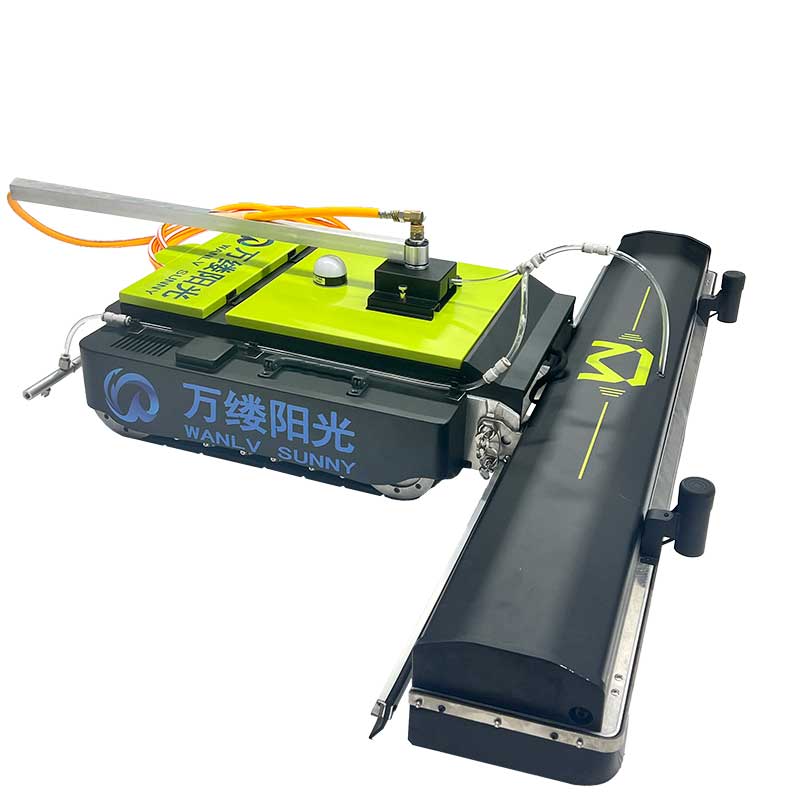

wls 73s (5)

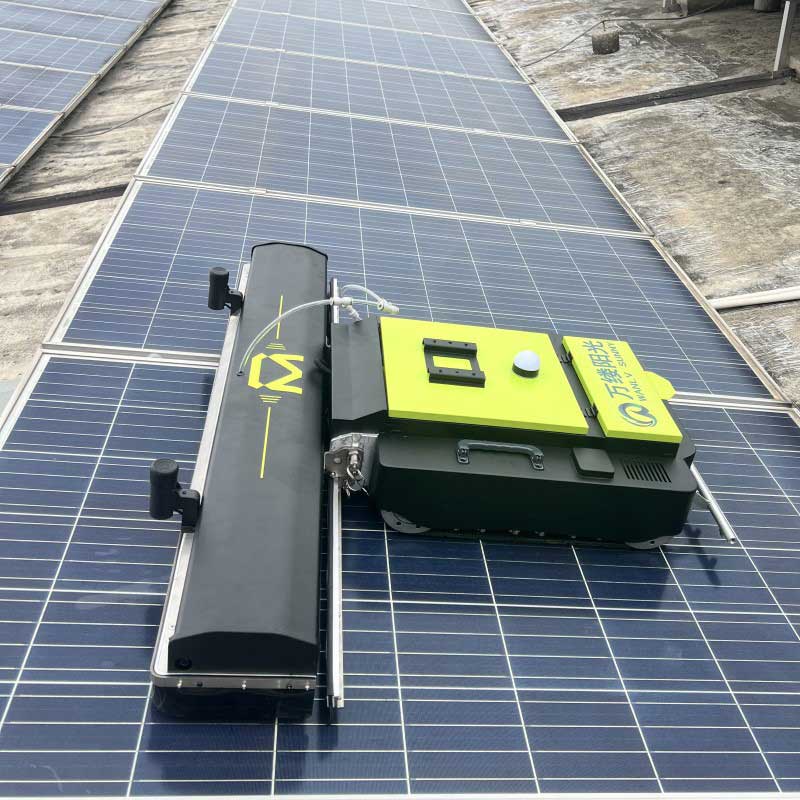

wls 73s (6)

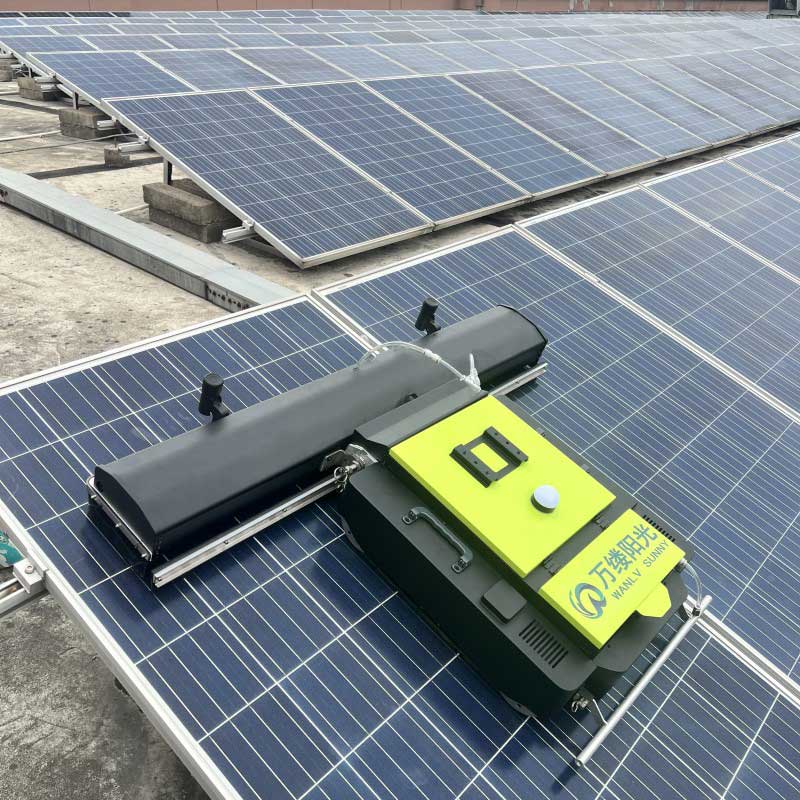

wls 73s (7)
wls 73s (8)
wls 73s (9)

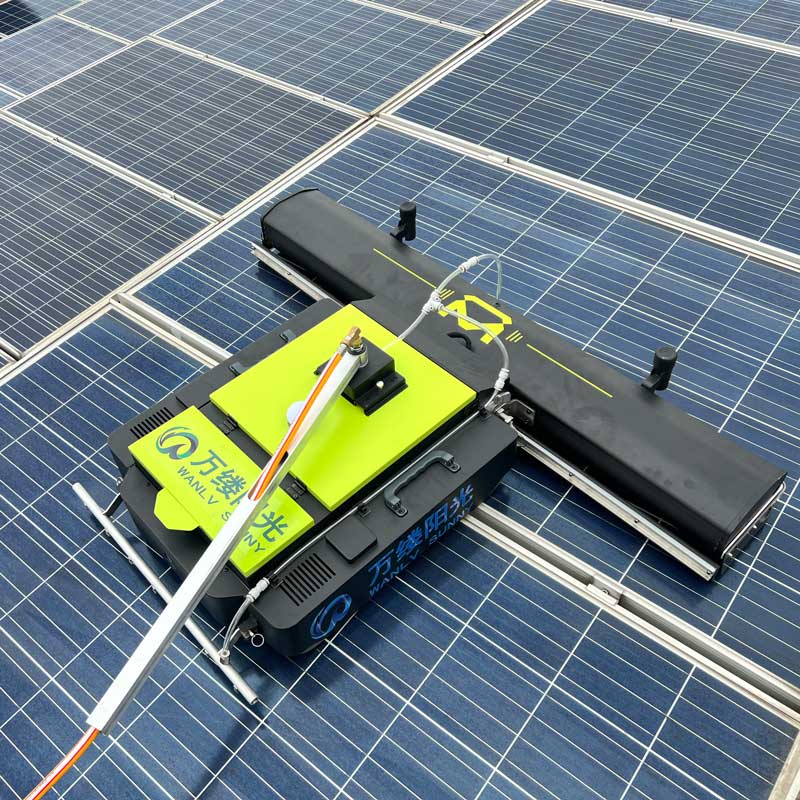

wls 73s (10)
wls 73s (1)
wls 73s (2)
wls 73s (3)
wls 73s (4)
wls 73s (5)
wls 73s (6)
wls 73s (7)
wls 73s (8)
wls 73s (9)
wls 73s (10)

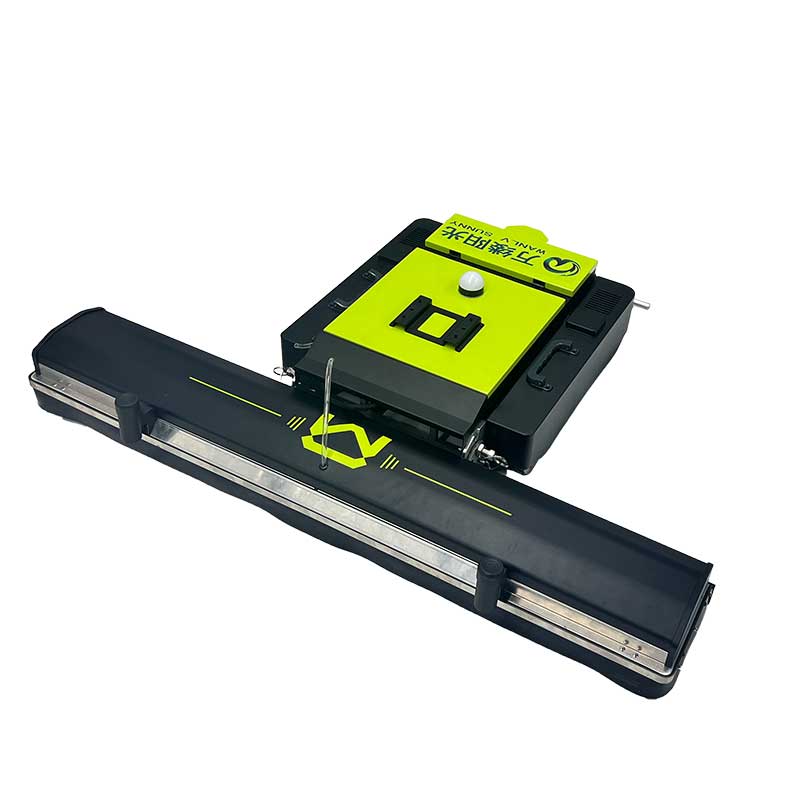

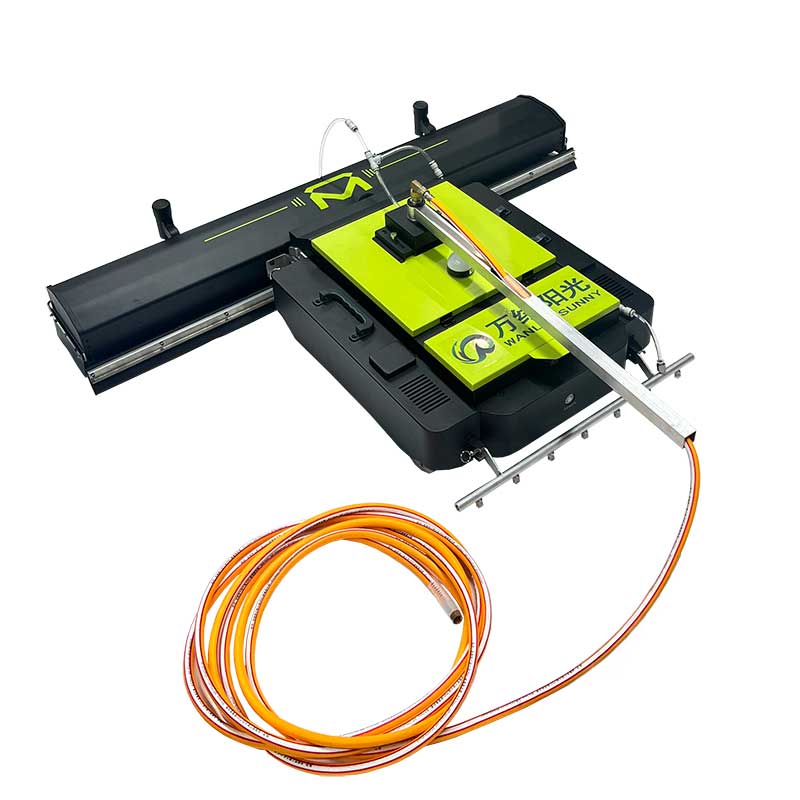

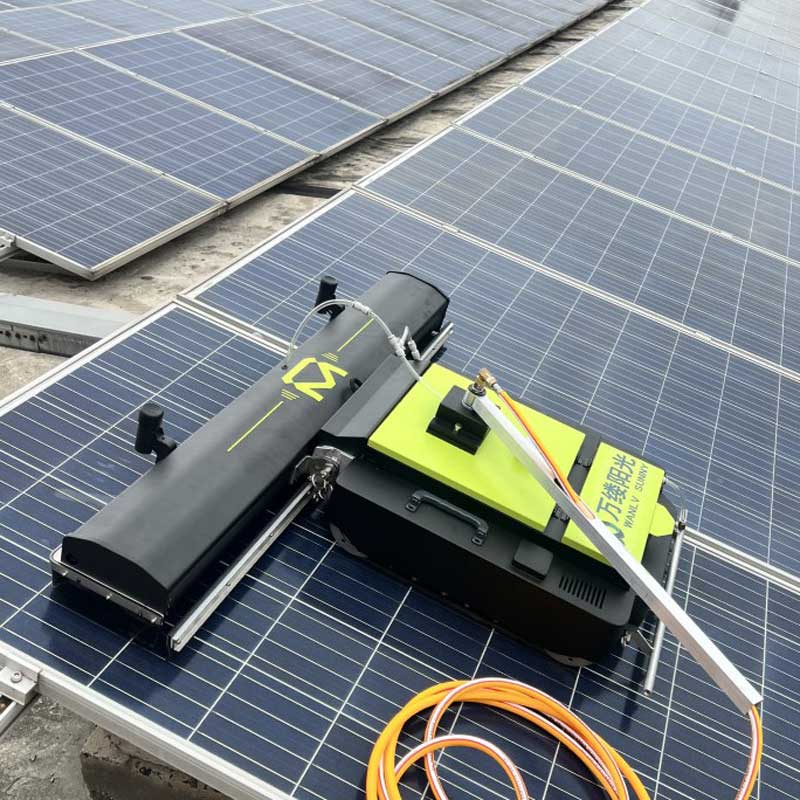

PV Panel Cleaning Robot WLS-73S Crawler Cleaning Robot

The WLS-73S Crawler Cleaning Robot is a specialized PV panel maintenance device designed for efficient and damage-free cleaning across multiple scenarios. With its lightweight structure, high cleaning efficiency, and user-friendly remote control operation, it addresses the maintenance needs of flat-ground solar stations, cement rooftops, and color steel tile photovoltaic power stations. The robot has passed third-party testing to ensure no damage to panels during long-term use, combining cleanliness, efficiency, and safety to become a reliable choice for photovoltaic operation and maintenance.

Get a Quote
logo
Wuxi Wanlv Intelligent Technology Co., Ltd.

Wuxi Wanlv intelligent Technology Co., Ltd. is located in
the Wuxi Economic Development Zone’s Industrial Park. lt isa technology-based enterprise integrating R&D,productionsales and service of photovoltaic cleaning equipment andcleaning robots:We came into being by combining profession-al mechanical design knowledge with solar panel cleaning
experence.

PV Panel Cleaning Robot WLS-73S Crawler Cleaning Robot
Technical Specifications

Net product weight

34kg

Product size

840*1223*300mm

Remote control distance

150m

Rolling brush length

1200mm

Water yield

4L/min (Max. 8.5L/min)

Brush rolling speed

330r/min

Battery parameter

25.2V 25.6AH
Battery type

Ternary lithium battery

Equipment power supply

Battery life on full charge

4h Quick replacement of spare batteries

Charging time

5h battery out of charge for European and Japanese standards
Cleaning capacityCleaning efficiency

1000㎡/h daily cleaning capacity of about 1.5MW

Cleaning pollutant

Float ash, dust accumulation, with neutral detergent clean light, moderate oil

Operating condition

Array inclination

0-15 °

Type of power station

Flat ground photovoltaic power station

Cement roof, color steel tile photovoltaic power station

Component type

Conventional aluminum bezel assembly

Working environment

Ambient temperature5-30°C Component temperature 5-50°C
Class of protection

IP65

Operating period

Recommended morning, evening, cloudy light rain weather

Handling performance

Remote control operation

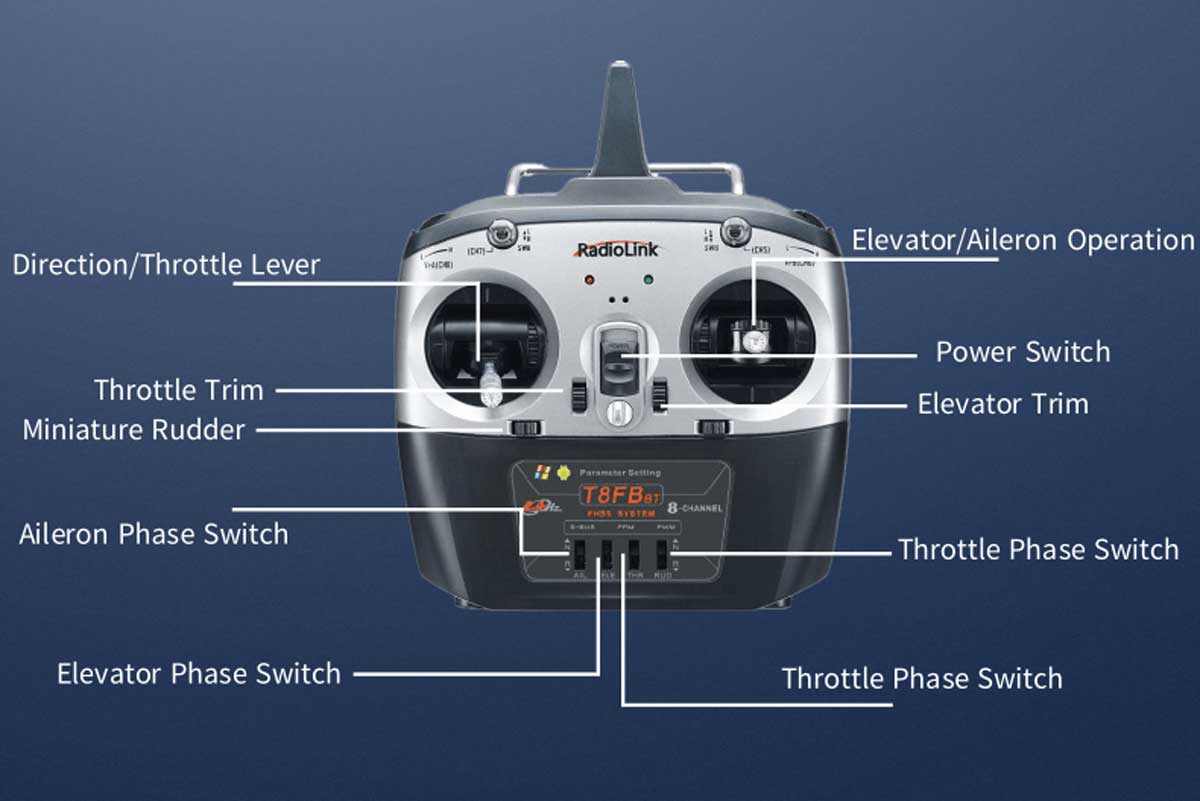

Remote Control

remote control

Export Packaging

wls 73s 11 (4)

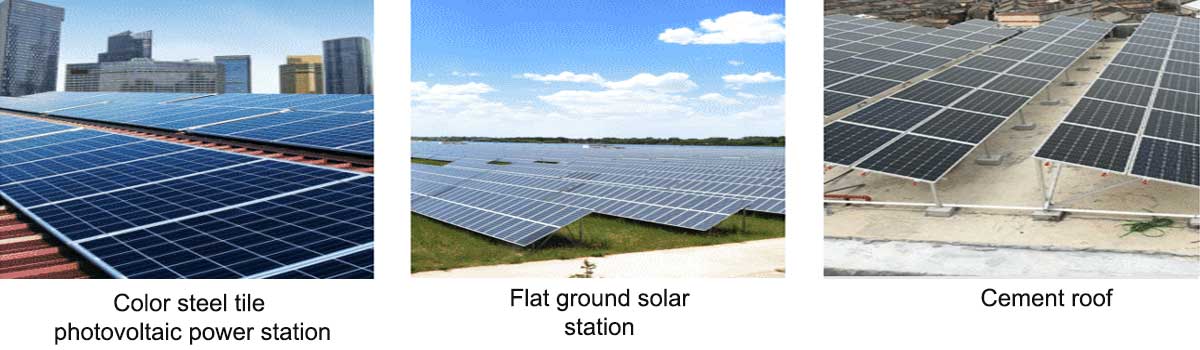

Application Scenario

wls 73s 11 (5)

Core Features
1. High Efficiency & Excellent Cleanliness
Two operators can take turns operating one machine to achieve a maximum cleaning capacity of 1.5 MW per day. Boasting a cleaning efficiency of up to 1000 m²/h, it uses sufficient water to flush panels thoroughly. It effectively removes floating dust and accumulated dust, and can clean light to medium oil stains when used with neutral detergent, ensuring optimal panel cleanliness and power generation efficiency.

2. Lightweight Design & Damage-Free Operation
Through structural optimization and lightweight design, the robot’s net weight is well-controlled. It has passed third-party testing to confirm no damage to PV panels during long-term operation, protecting the integrity and service life of your photovoltaic components.

3. Modular Design for Easy Handling
Adopting a modular structure, the robot’s usage, cleaning head, and battery can be quickly disassembled and assembled. This design greatly facilitates transportation and carrying, reducing logistics and on-site deployment costs, especially suitable for scenarios requiring frequent movement between different cleaning areas.

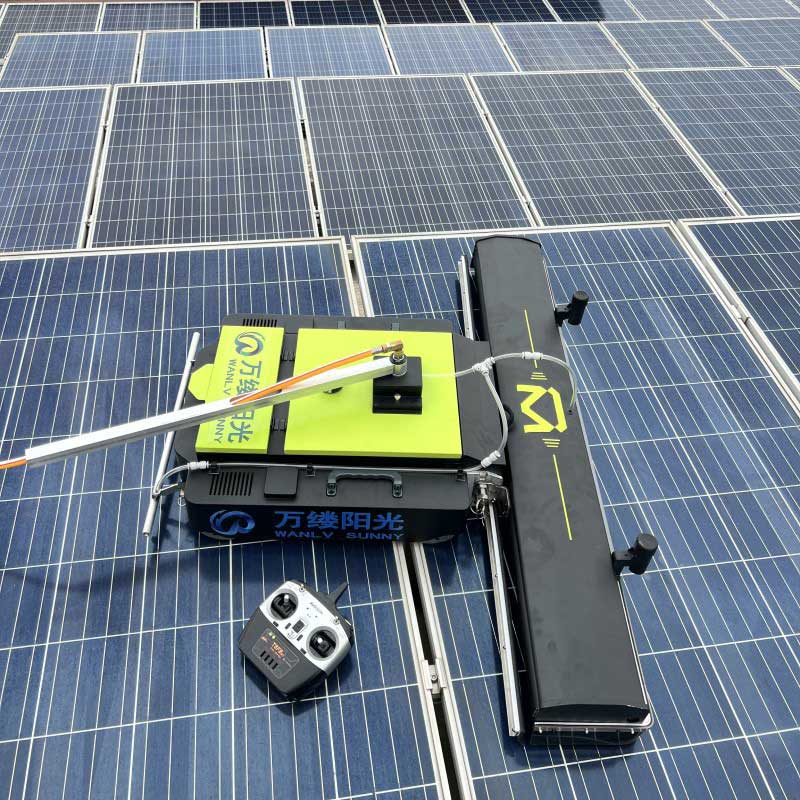

4. Flexible Remote Control Operation
Supports remote control with a maximum control distance of 150 meters, allowing operators to complete cleaning tasks from a safe area. It eliminates the need for manual climbing or close contact with panels, improving operational safety while adapting to different cleaning scenarios with ease.

5. Reliable Power Supply & Long Working Hours
Equipped with a ternary lithium battery (25.2V 25.6Ah) that provides a full battery life of 4 hours. The battery can be quickly replaced (spare battery optional) for continuous operation. The charging time is 5 hours, and the charger is compatible with EU and JP standards, meeting the needs of global users.

6. Versatile Adaptability & Enhanced Cleaning Options
Suitable for conventional aluminum frame PV components, with an operating inclination range of 0-15°. It can be equipped with a high-pressure water pump (optional) to further improve cleaning effect for stubborn contaminants. The robot operates in a temperature range of 5-30°C (component temperature 5-50°C) and has an IP65 protection level, ensuring stable performance in various environments.
