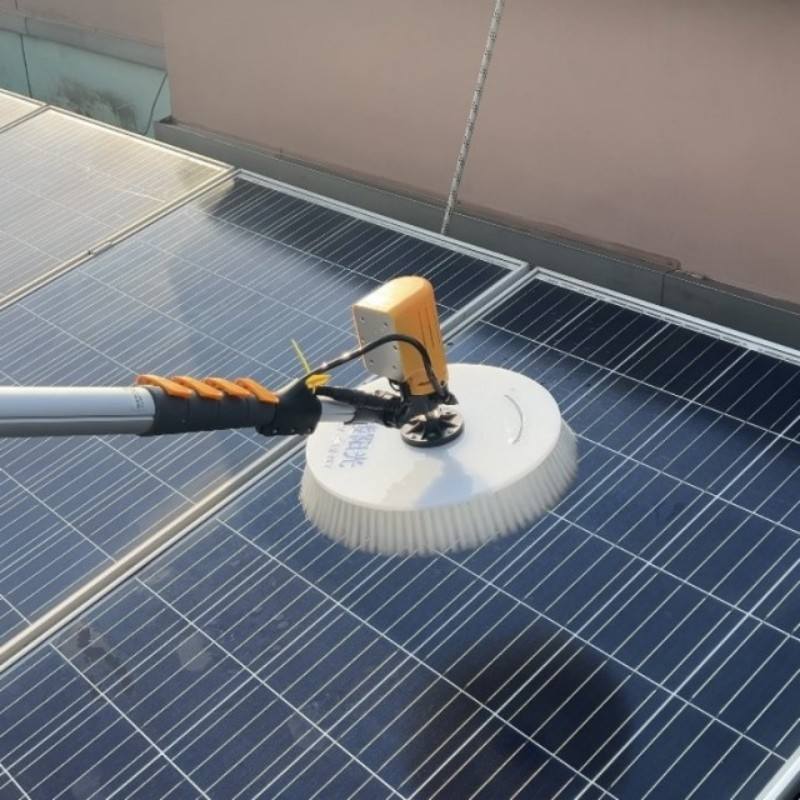

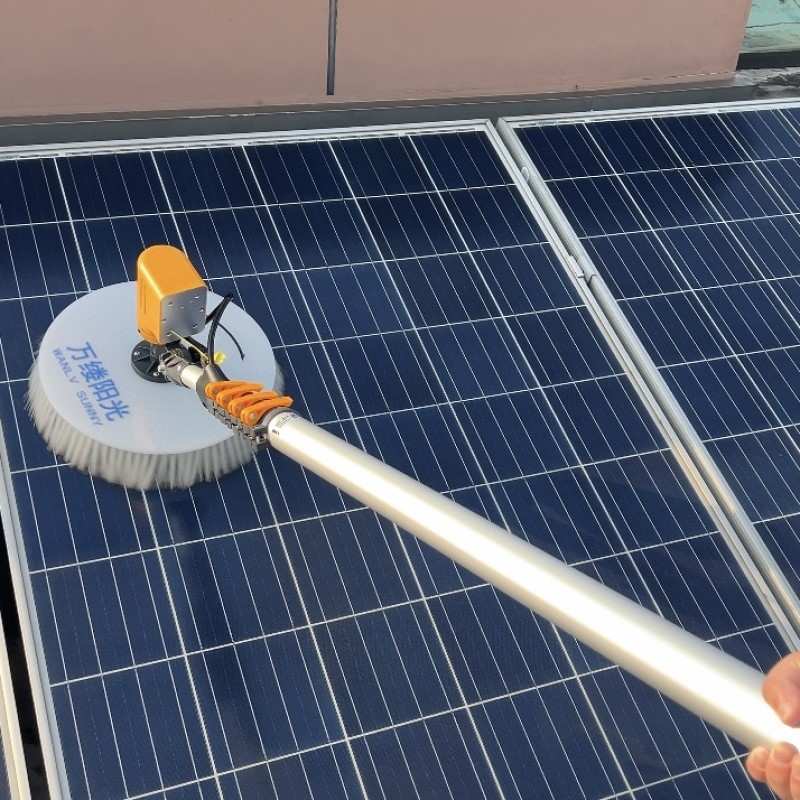

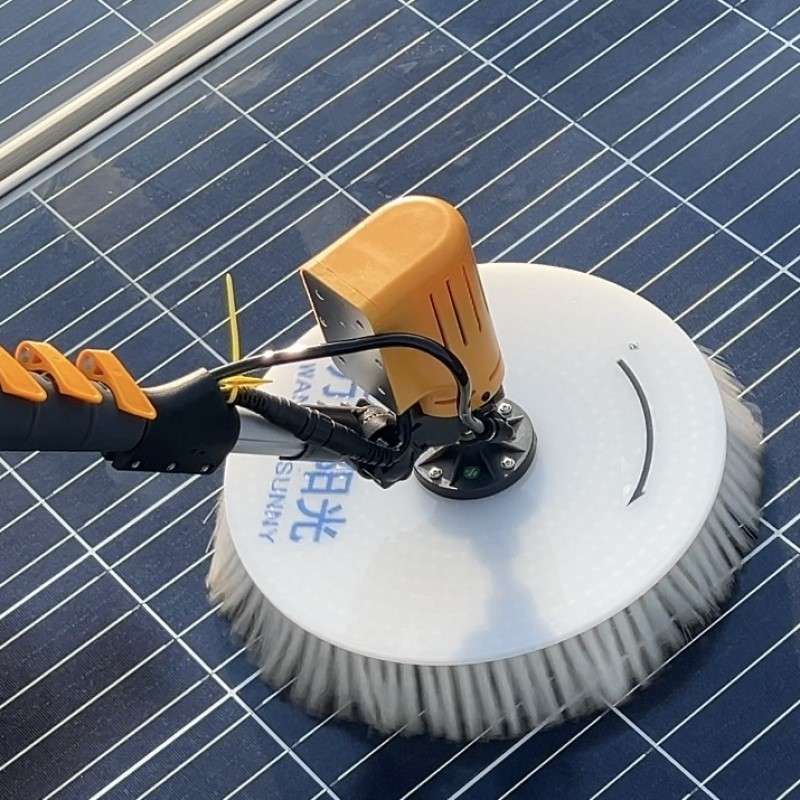

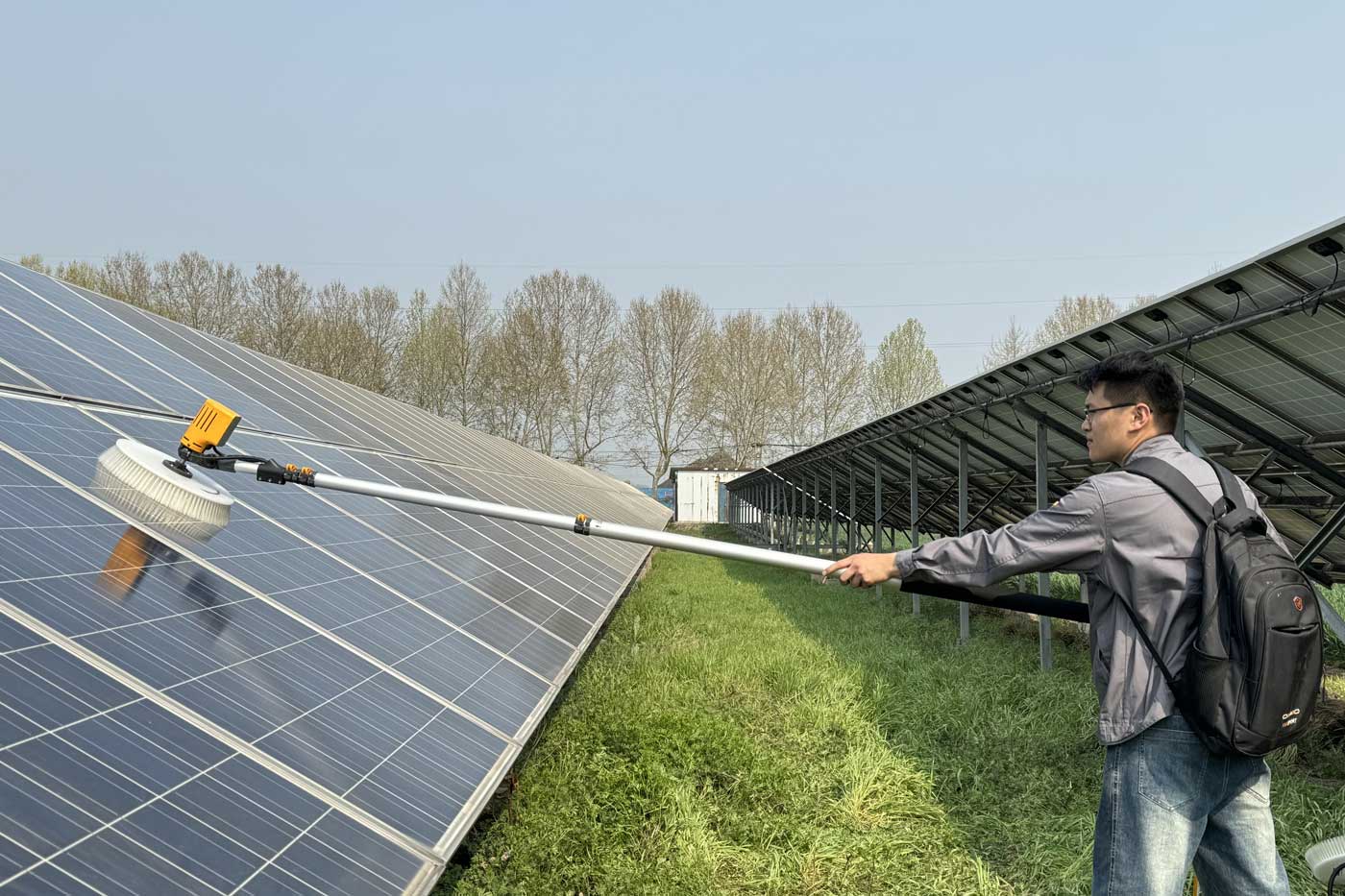

Solar Panel Cleaning Brush WLS-3
The WLS-3 Series is a professional photovoltaic panel cleaning equipment developed by Wuxi Wanlv Intelligent Technology Co., Ltd., designed for efficient and safe maintenance of solar panels across multiple scenarios. As a semi-automatic physical cleaning tool, it features a telescopic pole design with multiple length options and a high-performance cleaning brush, breaking through the limitations of traditional manual cleaning in reach and efficiency. Suitable for power industry, building industry, photovoltaic farms, and household cleaning needs, it delivers reliable, non-destructive cleaning while adhering to international certifications including CE, CB, and ISO.
Wuxi Wanlv Intelligent Technology Co., Ltd.
Wuxi Wanlv intelligent Technology Co., Ltd. is located in
the Wuxi Economic Development Zone’s Industrial Park. lt isa technology-based enterprise integrating R&D,productionsales and service of photovoltaic cleaning equipment andcleaning robots:We came into being by combining profession-al mechanical design knowledge with solar panel cleaning
experence.
PV Panel Cleaning Brush WLS-3 Details

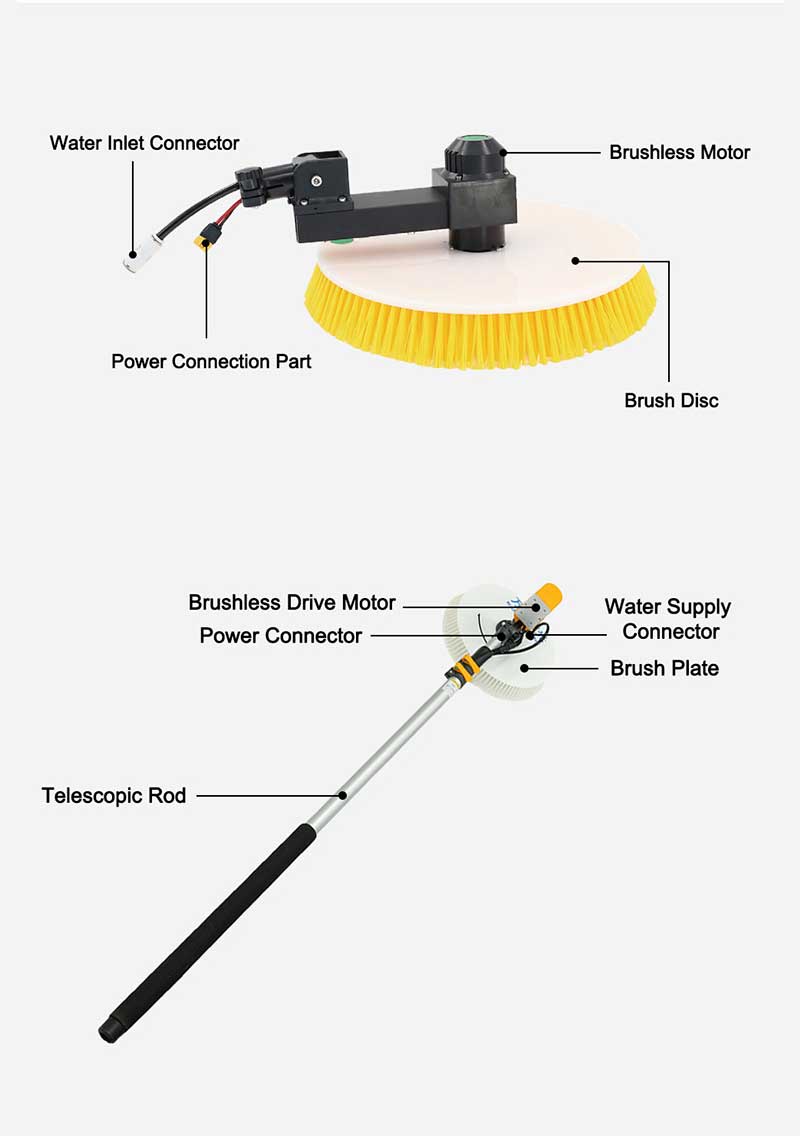

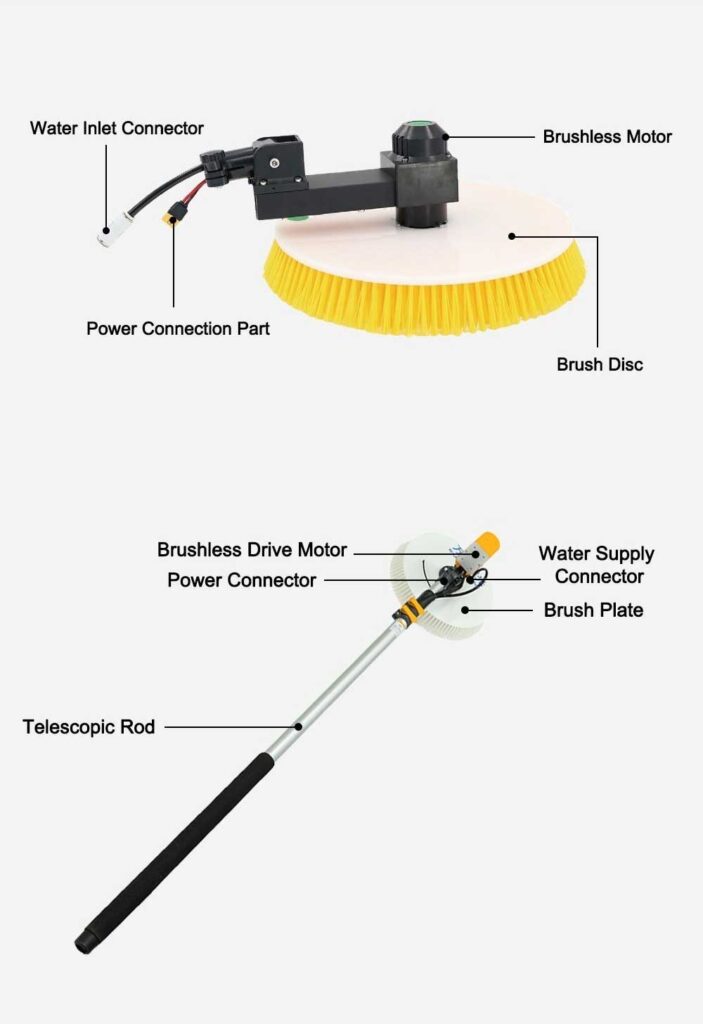

Product Components

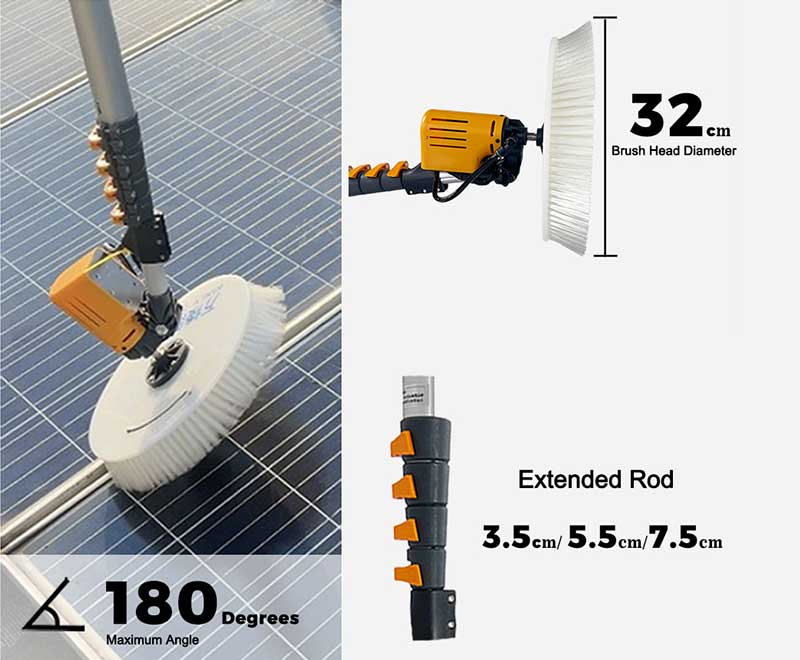

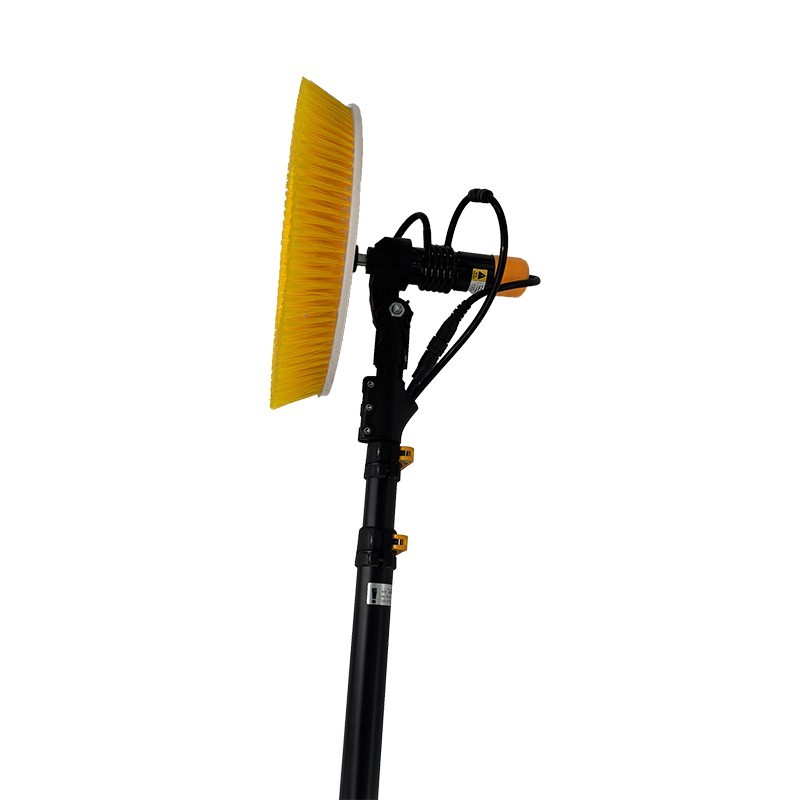

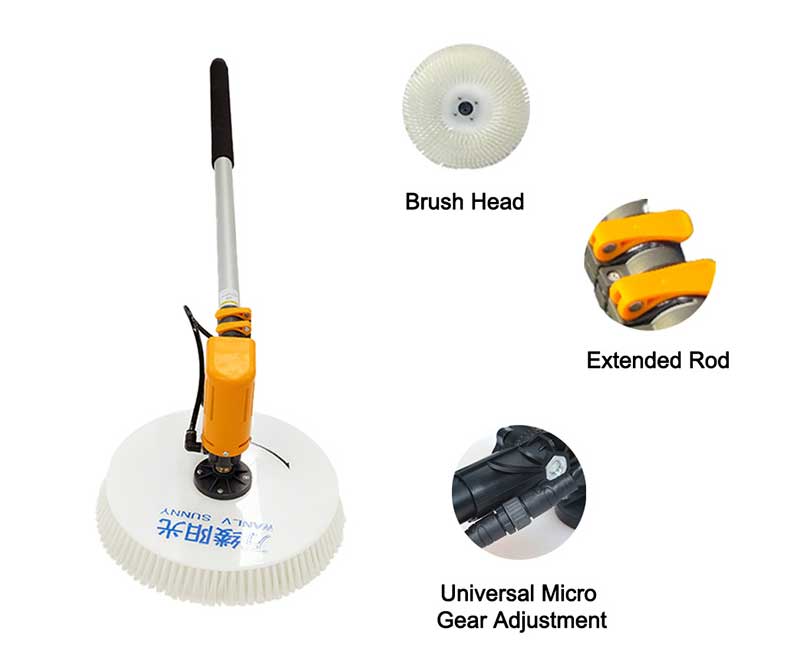

Independent Intellectual Property Rights,Any Angle Canbe Adjusted
Patented technology micro-gear rotating structure design, 30 rotating gearscan be adjusted at will.Can be used according to different construction anglesand inclined surfaces 180 degrees. Adjust the brush head angle to match thediameter 32cm large size photovoltaic fiber brush head, easy brushing.
Technical Parameters WLS-3-1
| Parameter | Unit | Mains Version/WLS-3-1 |
|---|---|---|
| Product Name | – | Mains Version/WLS-3-1 |
| Motor Speed | Rpm | 300/350 |
| Motor Power | Watt | 120/150 |
| Motor Voltage | Volt | 24 |
| Telescopic Rod Wall Thickness | MM | 1 |
| Telescopic Rod Length/Number Of Sections | M/Knot | 3.5/3，5.5/4，7.5/4 |
| Maximum Diameter Of Telescopic Tube | MM | 40 |
| Wire/Water Pipe Length | Meter | 16/20 |
| Power Supply | – | 220V Mains Power |
| Lithium Battery Voltage/Capacity | Volts/Ah | 24/15 |
| Lithium Battery Current | Amp | 10 |
| Usage Time/Battery Charge | Hour | – |
| Bristle Material | – | New Material Nylon Yarn |
| Telescopic Pole Material | – | Aluminum Alloy |
| Head Diameter | Centimeter | 32 |

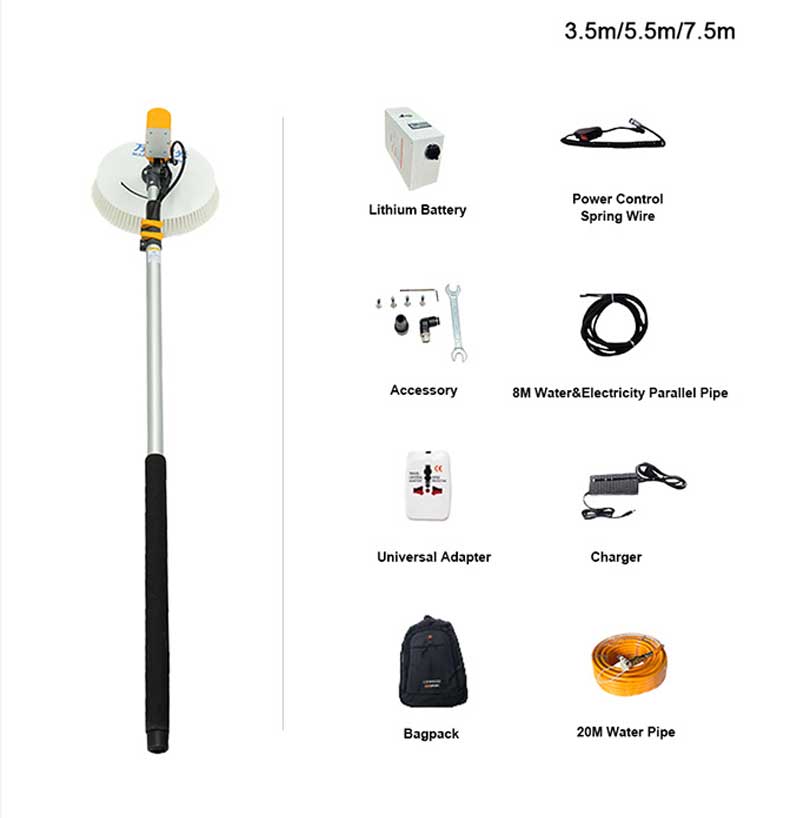

Technical Parameters WLS-3-2
| Parameter | Unit | Lithium Battery Version/WLS-3-2 |
|---|---|---|
| Product Name | – | Lithium Battery Version/WLS-3-2 |
| Motor Speed | Rpm | 300/350 |
| Motor Power | Watt | 120/150 |
| Motor Voltage | Volt | 24 |
| Telescopic Rod Wall Thickness | MM | 1 |
| Telescopic Rod Length/Number Of Sections | M/Knot | 3.5/3，5.5/4，7.5/4 |
| Maximum Diameter Of Telescopic Tube | MM | 40 |
| Wire/Water Pipe Length | Meter | 8/20 |
| Power Supply | – | Lithium Battery Pack |
| Lithium Battery Voltage/Capacity | Volts/Ah | 24/15 |
| Lithium Battery Current | Amp | 10 |
| Usage Time/Battery Charge | Hour | 6-7/5 |
| Bristle Material | – | New Material Nylon Yarn |
| Telescopic Pole Material | – | Aluminum Alloy |
| Head Diameter | Centimeter | 32 |
Technical Parameters WLS-3-3
| Parameter | Unit | Dual Use Version/WLS-3-3 |
|---|---|---|
| Product Name | – | Dual Use Version/WLS-3-3 |
| Motor Speed | Rpm | 300/350 |
| Motor Power | Watt | 120/150 |
| Motor Voltage | Volt | 24 |
| Telescopic Rod Wall Thickness | MM | 1 |
| Telescopic Rod Length/Number Of Sections | M/Knot | 3.5/3，5.5/4，7.5/4 |
| Maximum Diameter Of Telescopic Tube | MM | 40 |
| Wire/Water Pipe Length | Meter | 16/20 |
| Power Supply | – | 220V Mains Power And Lithium Battery Pack |
| Lithium Battery Voltage/Capacity | Volts/Ah | 24/15 |
| Lithium Battery Current | Amp | 10 |
| Usage Time/Battery Charge | Hour | 6-7/5 |
| Bristle Material | – | New Material Nylon Yarn |
| Telescopic Pole Material | – | Aluminum Alloy |
| Head Diameter | Centimeter | 32 |

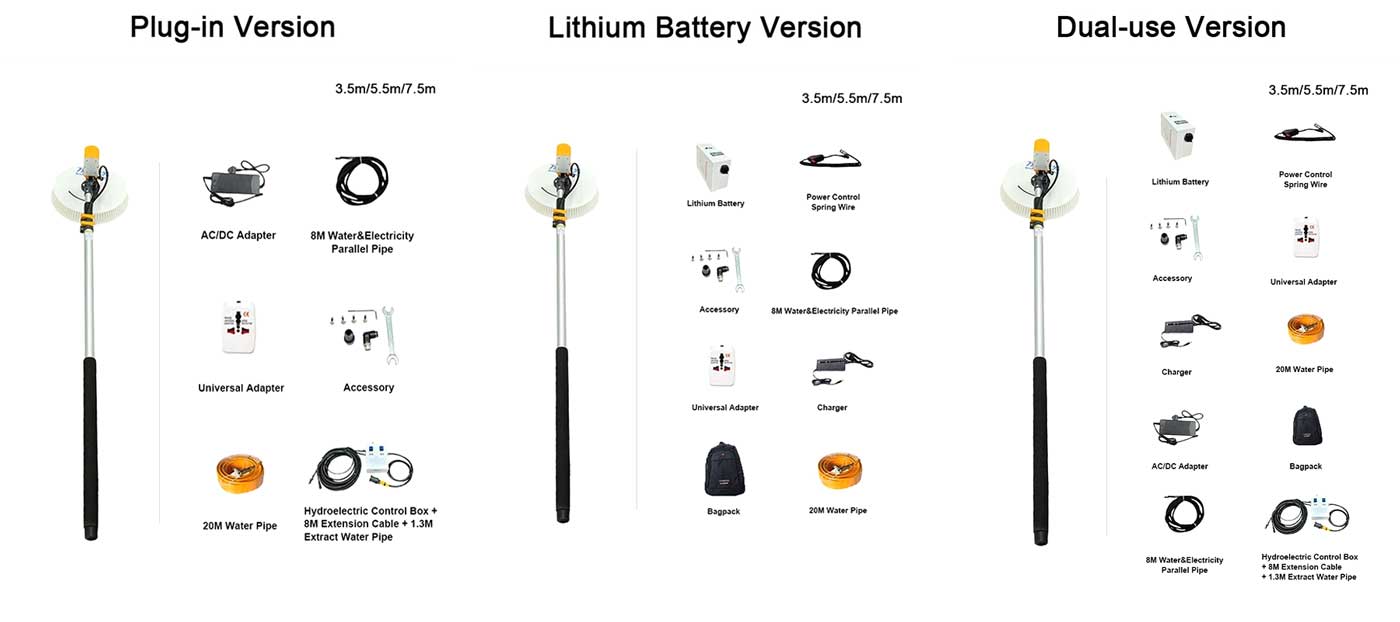

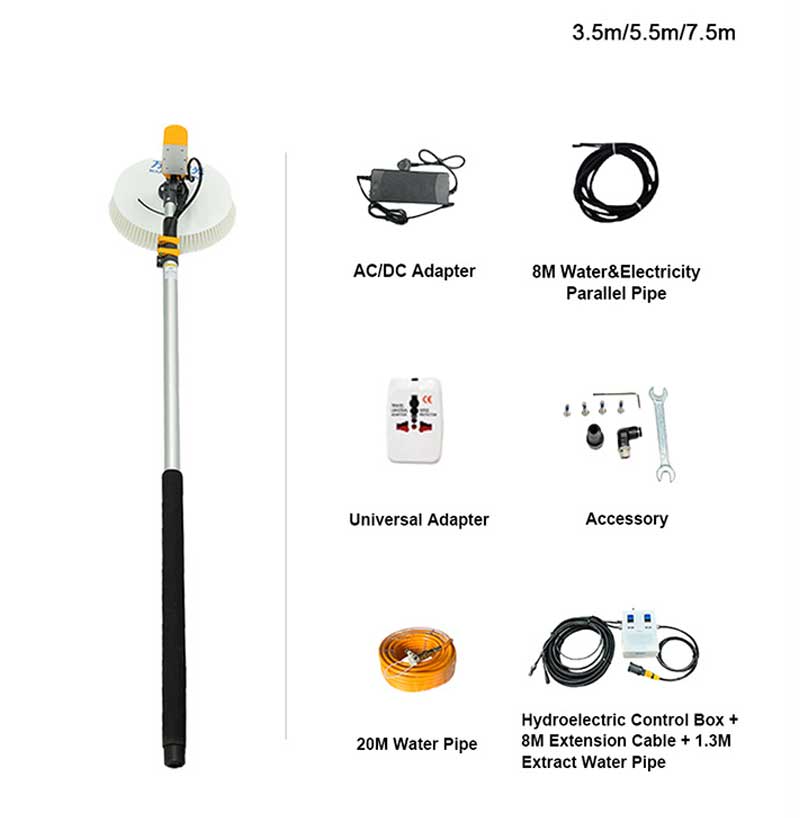

Multi-configuration Options

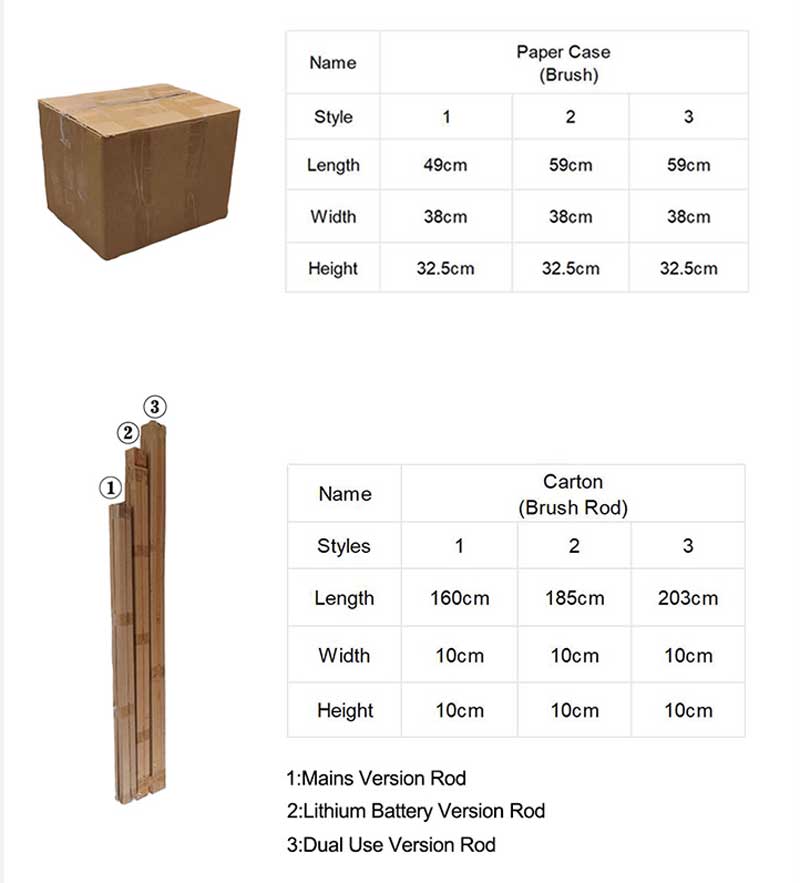

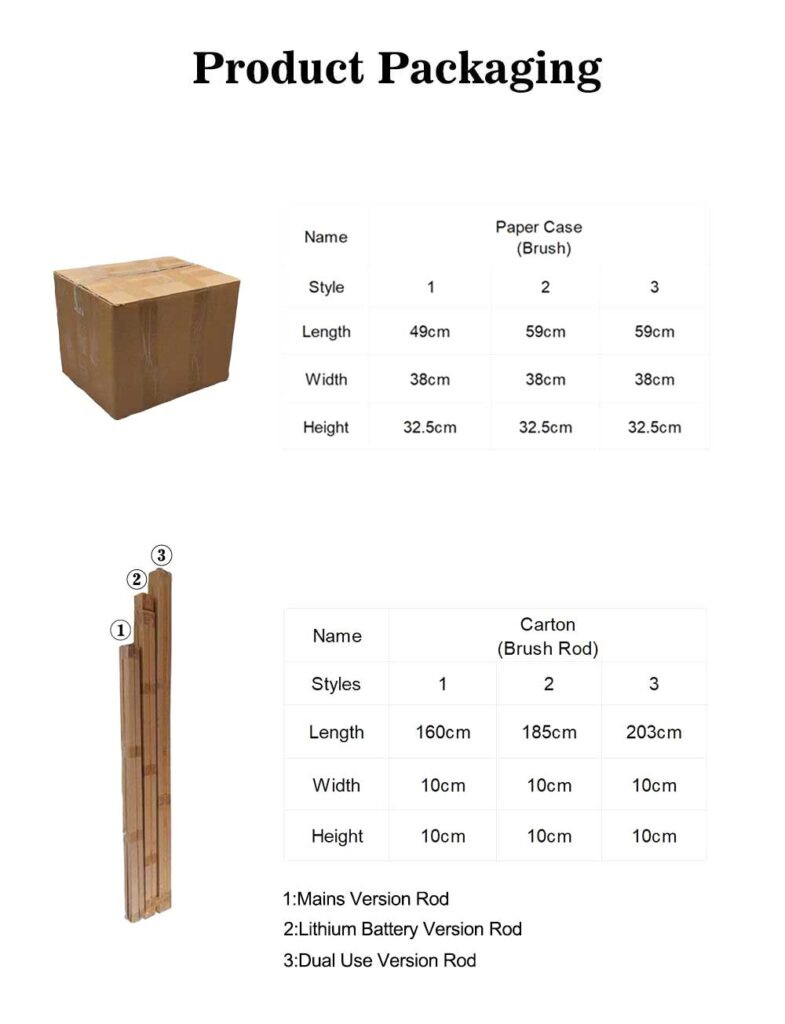

Product Packaging
Standard Export Carton | LengthWidthHeight (CM) | Gross Weight (KG) | Sample Charge Weight (KG) | |
Telescopic Pole Package | 3.5M | 158*10*10 | 2.8 | 4 |
5.5M | 183*10*10 | 3.4 | 4 | |
7.5M | 201*10*10 | 4.5 | 5 | |
Other Parts Package | Plug-in Version | 46*38*27 | 8.5 | 10 |
Lithium Battery Version | 46*38*27 | 9.8 | 10 | |
Dual Power Version | 46*38*38 | 15 | 15 | |
Note | The brush is packaged in split type with pole and other parts which may lead to two deliveries. | |||

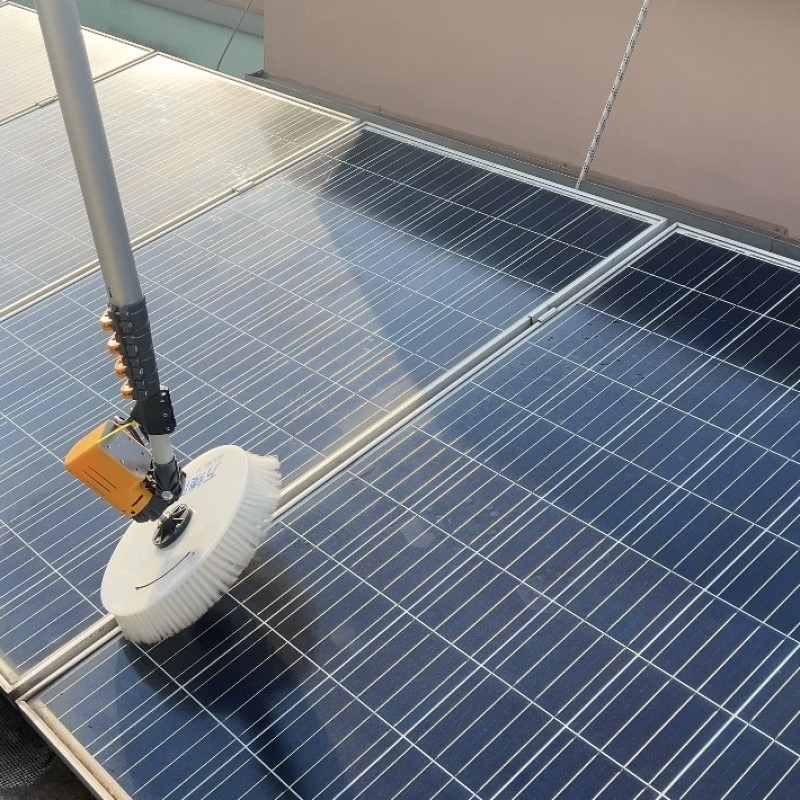

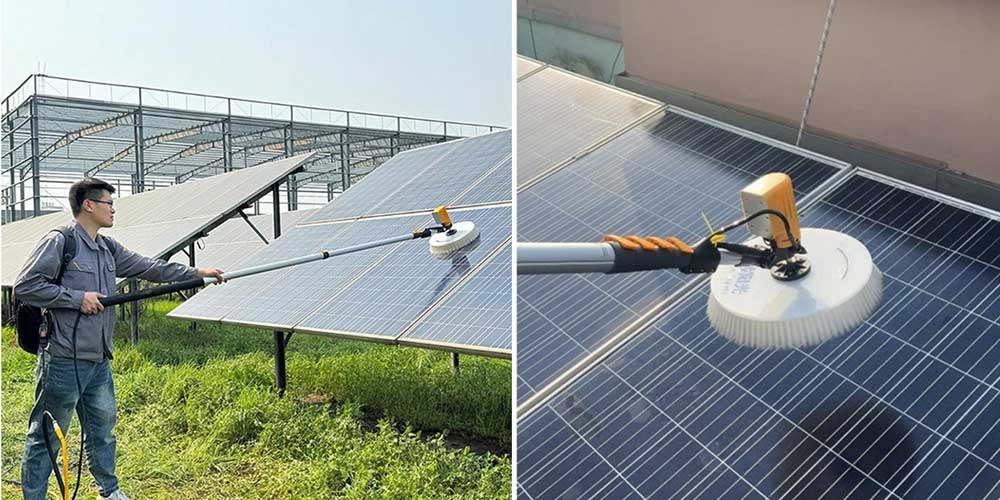

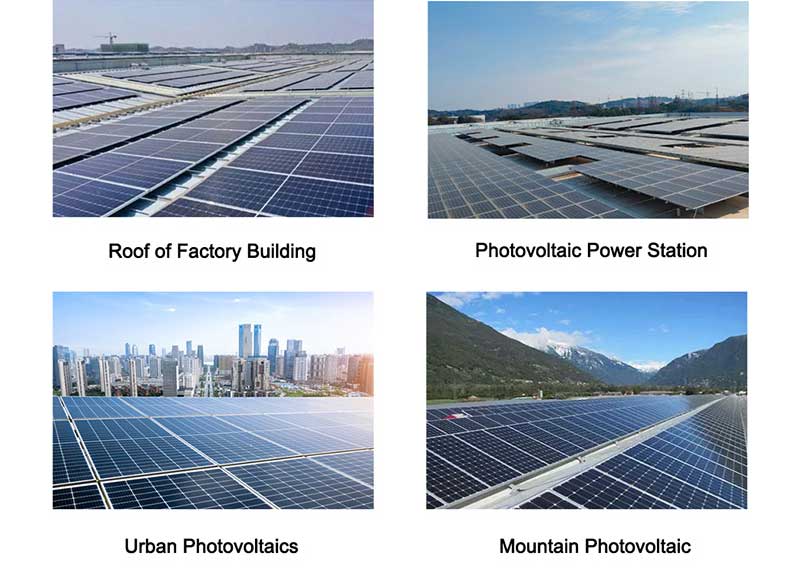

Applicable Scenes
Roof of Factory Building
Urban Photovoltaics
Photovoltaic Power Station
Mountain Photovoltaic
Core Features

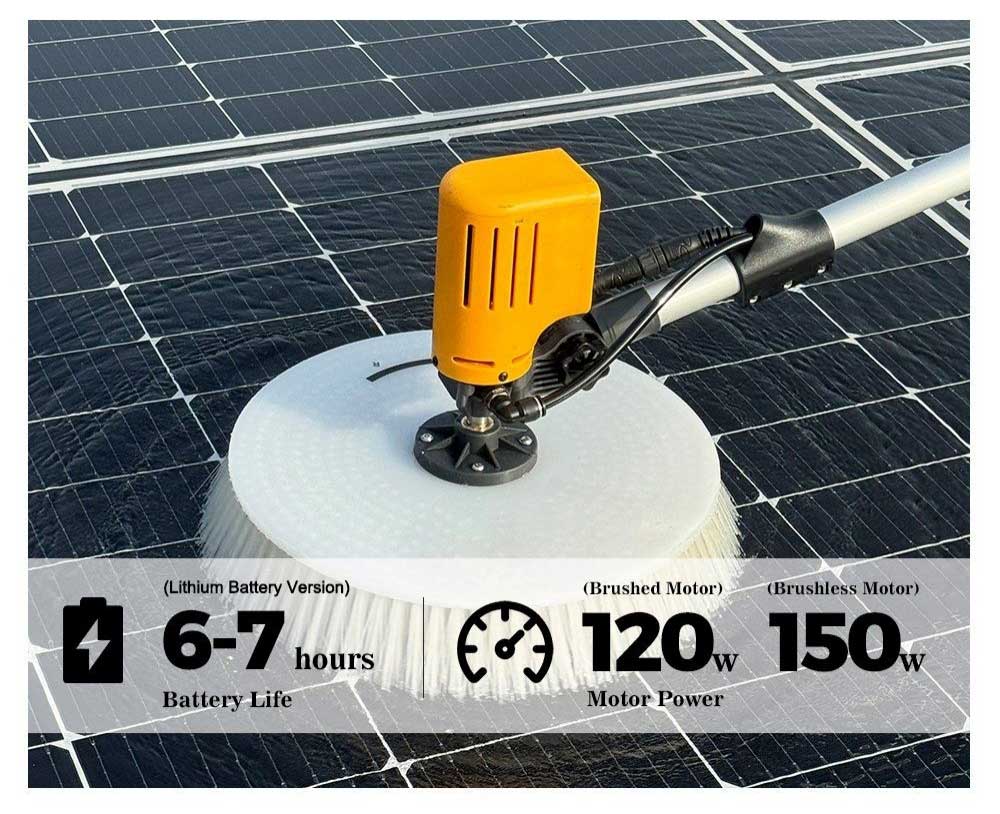

1. Multi-Version Power Supply for Flexible Use
2. Telescopic Pole Design with Wide Reach
3. High-Efficiency Physical Cleaning
4. Reliable Motor Performance
5. User-Friendly & Mobile Operation
6. International Certification & Quality Assurance
